WAGO 282-698/281-434 2-conductor fuse terminal block
Part Number # 282-698/281-434
SKU # 1244277
Wago 282-698/281-434 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-698/281-434 |
| SKU #: | 1244277 |

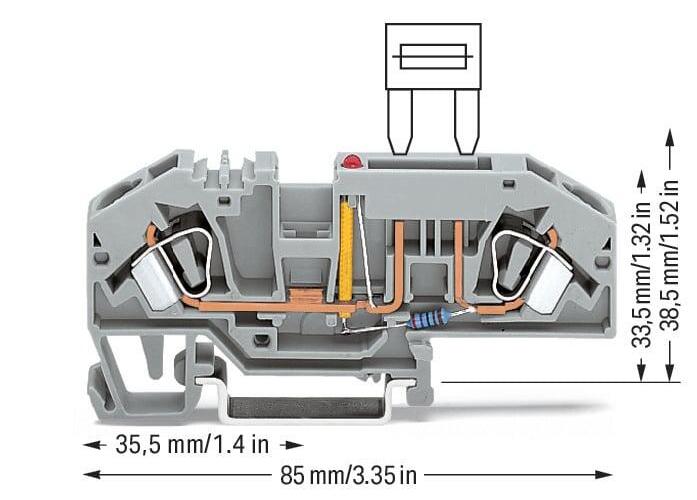

| Dimensions: | 3.346 in H x 0.315 in W x 1.319 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 85 mm / 3.346 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 25 A |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 2 |
| Weight: | 17.626 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821234586 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 282-698/281-434 2-conductor fuse terminal block
Brand: Wago
Part Number: 282-698/281-434
Additional Description: WAGO-282-698/281-434 2-CONDUCTOR FUSE TERMINAL BLOCK; FOR AUTOMOTIVE BLADE-STYLE FUSES; WITH TEST OPTION; WITH BLOWN FUSE INDICATION BY LED; 24 V; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 6 MM; CAGE CLAMP; 6,00 MM; GRAY 51240585 600mm GRA FOR AUTOMOTIVE BLADE-STYLE FUSES; WITH TEST OPTION; WITH BLOWN FUSE INDICATION BY LED; 24 V; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 6 MM ; CAGE CLAMP ; 6,00 MM ; GRAY LED 51240585
Catalog Description: 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; with blown fuse indication by LED; 24 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP®; 6,00 mm²; gray
282-698/281-434 Standards
RoHS CompliantSKU #1244277Part Number #282-698/281-434UNSPSC39121410UPC04050821234586
