Part Number # 282-821
SKU # 2429455
282-821
WAGO 282-821 Terminal Blocks
Part Number # 282-821
SKU # 2429455
Wago 282-821 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-821 |
| SKU #: | 2429455 |
| Amperage Rating: | 30 A |
| Dimensions: | 3.858 in H x 0.315 in W x 1.831 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821227526 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 282-821 Terminal Blocks
Brand: Wago
Part Number: 282-821

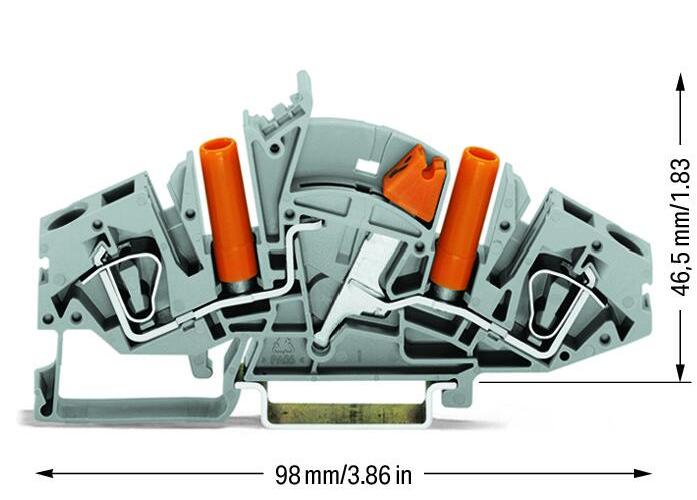

Additional Description: WAGO-282-821 2-CONDUCTOR DISCONNECT/TEST TERMINAL BLOCK; LONGITUDINAL SWITCHING; WITH TOUCH-PROOF TEST SOCKETS; FOR 4 MM TEST PLUGS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 6 MM ; CAGE CLAMP ; 6,00 MM ; GRAY 51240070
Catalog Description: 2-conductor disconnect/test terminal block; longitudinal switching; with touch-proof test sockets; for 4 mm Ø test plugs; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP®; 6,00 mm²; gray
282-821 Item Features
- Solid conductor 24 to 10 AWG, Fine-stranded conductor 24 to 10 AWG
282-821 Standards
RoHS CompliantSKU #2429455Part Number #282-821UNSPSC39121410UPC04050821227526
Image provided may only be a representation of final product and may include optional equipment
