Part Number # 282-860
SKU # 2146607
282-860

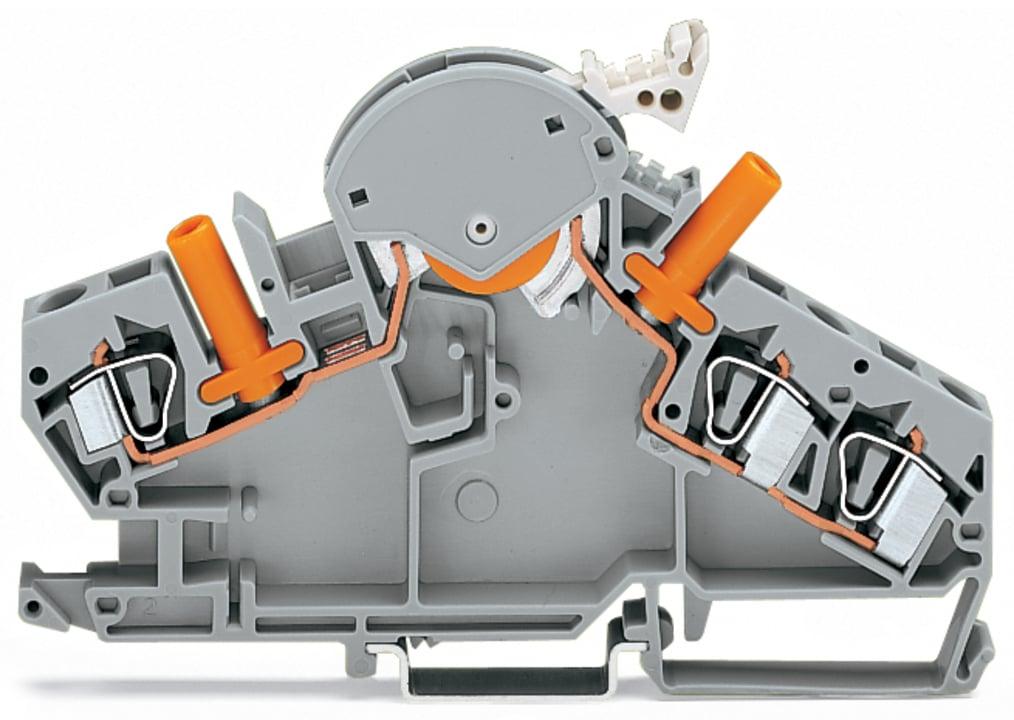

WAGO 282-860 3-conductor disconnect/test terminal block
Part Number # 282-860
SKU # 2146607
Wago 282-860 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-860 |
| SKU #: | 2146607 |
| Amperage Rating: | 30 A |
| Dimensions: | 4.803 in H x 0.315 in W x 2.953 in D |
| Series: | 282 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Cage Clamp |
| Type: | 3-Conductor |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | CN |
| Depth: | 122 mm / 4.803 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 30 A |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 3 |
| Weight: | 43.191 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918651325 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 282-860 3-conductor disconnect/test terminal block
Brand: Wago
Part Number: 282-860
Additional Description: WAGO-282-860 3-CONDUCTOR DISCONNECT/TEST TERMINAL BLOCK; E.G., VOLTAGE TRANSFORMER CIRCUITS; WITH TOUCH-PROOF TEST SOCKETS; FOR 4 MM TEST PLUGS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 6 MM; CAGE CLAMP; 6,00 MM; GRAY 51140614 tests 35x15-35x7.5 6mm 600mm GRA TERMINAL BLOCK; E.G., VOLTAGE TRANSFORMER CIRCUITS; WITH TOUCH-PROOF TEST SOCKETS; FOR 4 MM TEST PLUGS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; 6 MM ; CAGE CLAMP ; 6,00 MM ; GRAY POINT 51140614
Catalog Description: 3-conductor disconnect/test terminal block; e.g., voltage transformer circuits; with touch-proof test sockets; for 4 mm Ø test plugs; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP®; 6,00 mm²; gray
282-860 Standards
RoHS Compliant|UL94SKU #2146607Part Number #282-860UNSPSC39121410UPC04044918651325
Image provided may only be a representation of final product and may include optional equipment
