Part Number # 282-865
SKU # 2146606
282-865

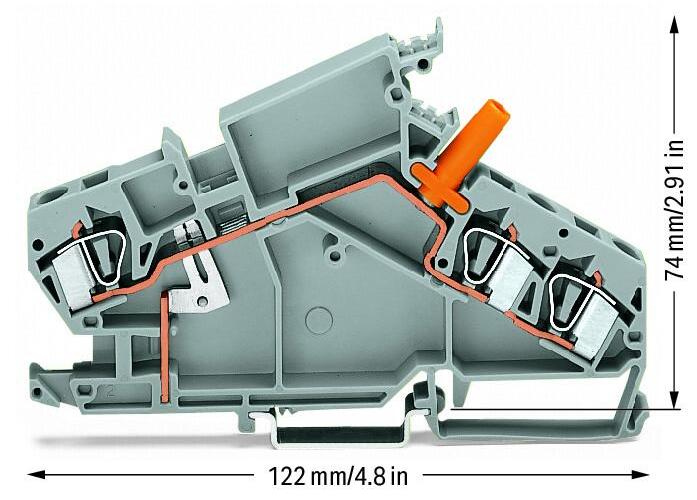

WAGO 282-865 3-conductor through terminal block
Part Number # 282-865
SKU # 2146606
$15.31 / Each
Typical price:$16.59 / Each
Wago 282-865 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-865 |
| SKU #: | 2146606 |
| Amperage Rating: | 30 A |
| Dimensions: | 4.803 in H x 0.315 in W x 2.913 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 122 mm / 4.803 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 30 A |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 3 |
| Weight: | 38.608 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918754224 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15.31 / Each
Typical price:$16.59 / Each
Quantity:
WAGO 282-865 3-conductor through terminal block
Brand: Wago
Part Number: 282-865
Additional Description: WAGO-282-865 3-CONDUCTOR THROUGH TERMINAL BLOCK; 6 MM; WITH TOUCH-PROOF TEST SOCKET; E.G., CURRENT TRANSFORMER CIRCUITS; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 6,00 MM; GRAY 51143291
Catalog Description: 3-conductor through terminal block; 6 mm²; with touch-proof test socket; e.g., current transformer circuits; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 6,00 mm²; gray
282-865 Standards
RoHS CompliantSKU #2146606Part Number #282-865UNSPSC39121410UPC04044918754224
Image provided may only be a representation of final product and may include optional equipment
