Part Number # 282-868
SKU # 2359437
Image Disclaimers Message
282-868

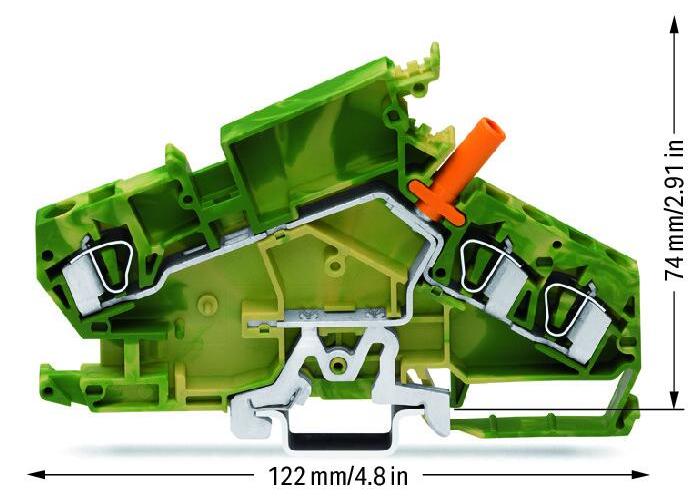

WAGO 282-868 3-conductor ground terminal block
Part Number # 282-868
SKU # 2359437
$23.37 / Each
Typical price:$25.32 / Each
Wago 282-868 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-868 |
| SKU #: | 2359437 |
| Dimensions: | 4.803 in H x 0.315 in W x 2.913 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 122 mm / 4.803 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 3 |
| Weight: | 51.414 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821612773 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$23.37 / Each
Typical price:$25.32 / Each
Quantity:
- WAGO, 282-868, Ground Terminal Block, Operating Tool, 1 Pole, 24 to 10 AWG Wire, 0.47 to 0.51 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Green/Yellow, 4.803 in H x 0.315 in W x 2.913 in D Dimensions
282-868 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #2359437Part Number #282-868UNSPSC39121410UPC04050821612773
