Part Number # 282-901
SKU # 294512
Image provided may only be a representation of
final product and may include optional equipment
282-901

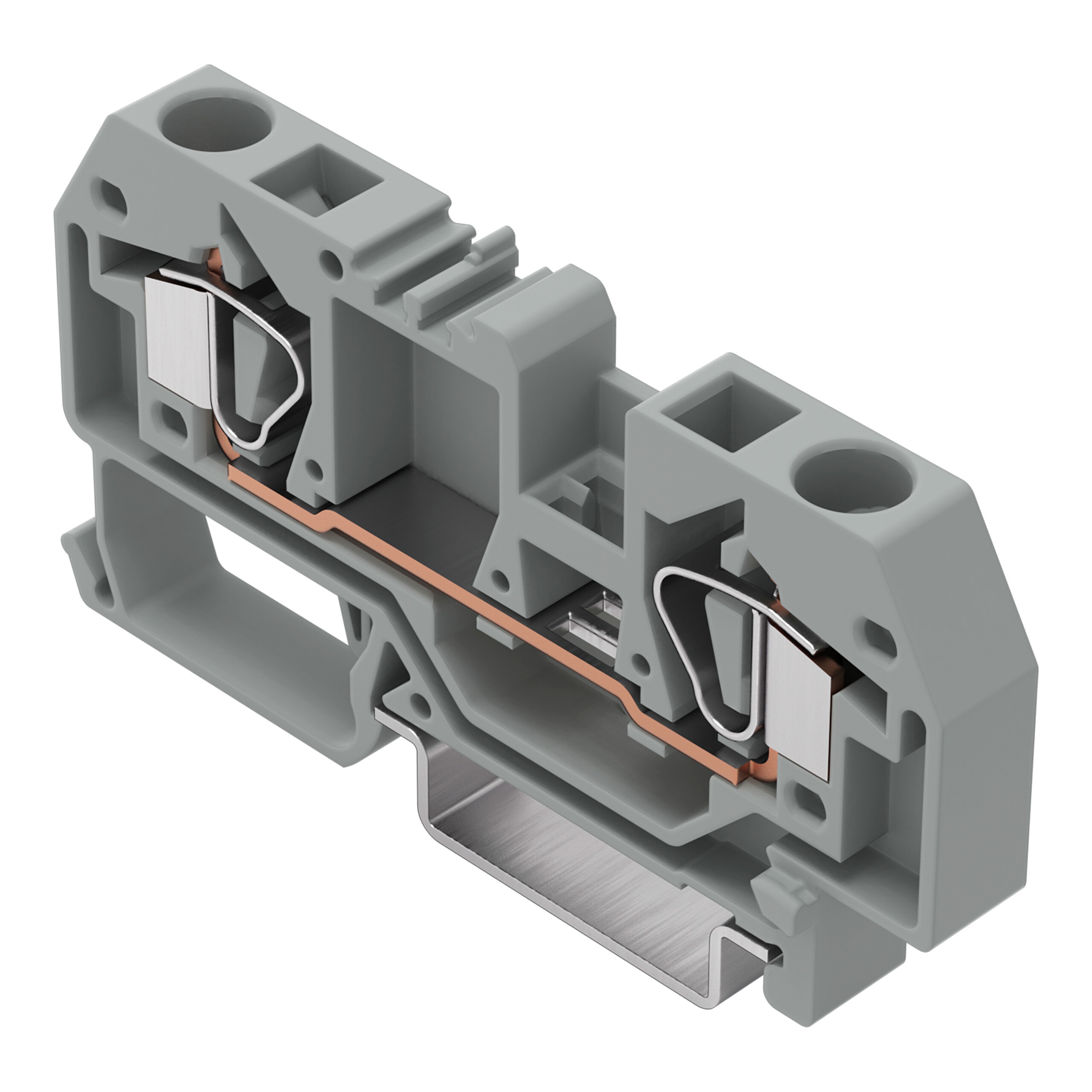

WAGO 282-901 2-conductor through terminal block
Part Number # 282-901
SKU # 294512
Wago 282-901 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-901 |
| SKU #: | 294512 |
| Amperage Rating: | 41, 41 A |
| Dimensions: | 1.28 in H x 0.315 in W x 2.933 in D |
| Terminal Type: | Through |
| Wire Size: | 24 to 10, 24 to 10 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 74.5 mm / 2.933 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | DIN Rail, DIN-35 rail |
| Rated current: | 41 A |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 2 |
| Weight: | 15.806 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918445801 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 282-901 2-conductor through terminal block
Brand: Wago
Part Number: 282-901
WAGO Terminal Block, 800 VAC, 41 A, 24 to 10 AWG Wire, 0.47 to 0.51 in Wire Strip Length, Through Terminal, DIN Rail Mount, Polyamide 6.6, Gray, 1.28 in H x 0.315 in W x 2.933 in D
Additional Description: WAGO-282-901 (N) 2-CONDUCTOR THROUGH TERMINAL BLOCK; 6 MM; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 6,00 MM; GRAY 51126377 6 MM ; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 6,00 MM ; GRAY NON-CANCELABLE, NON-RETURNABLE 51126377
Catalog Description: 2-conductor through terminal block; 6 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 6,00 mm²; gray
282-901 Item Features
- Carrier rail 35 x 15 mounting
- Front entry wiring
- Copper connectable conductor material
- Horizontal design
- 2 number of conductor
- 10 to 24 AWG fine stranded conductor
- 10 to 24 AWG solid connection
282-901 Standards
RoHS CompliantSKU #294512Part Number #282-901UNSPSC39121410UPC04044918445801
