Part Number # 282-904
SKU # 1593374
Image Disclaimers Message
282-904

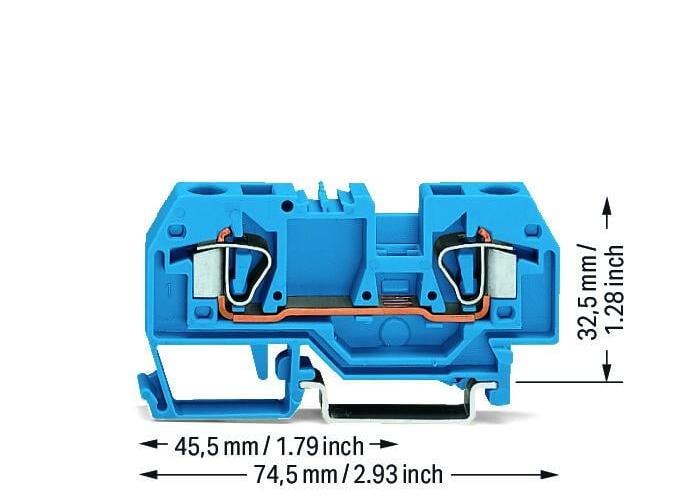

WAGO 282-904 2-conductor through terminal block
Part Number # 282-904
SKU # 1593374
$208.50 / 50Each
Typical price:$226.00 / Each
Wago 282-904 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 282-904 |
| SKU #: | 1593374 |
| Amperage Rating: | 41 A |
| Dimensions: | 2.933 in H x 0.315 in W x 1.28 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 74.5 mm / 2.933 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 41 A |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 2 |
| Weight: | 15.816 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918445887 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$208.50 / 50Each
Typical price:$226.00 / Each
Quantity:
WAGO 282-904 2-conductor through terminal block
Brand: Wago
Part Number: 282-904
Additional Description: WAGO-282-904 2-CONDUCTOR THROUGH TERMINAL BLOCK; 6 MM; SUITABLE FOR EX I APPLICATIONS; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 6,00 MM; BLUE 51126385 6 MM ; SUITABLE FOR EX I DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 6,00 MM ; BLUE 51126385
Catalog Description: 2-conductor through terminal block; 6 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 6,00 mm²; blue
282-904 Application
Suitable for Ex i applications282-904 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #1593374Part Number #282-904UNSPSC39121410UPC04044918445887
