Part Number # 283-104
SKU # 2366766
Image provided may only be a representation of
final product and may include optional equipment
283-104

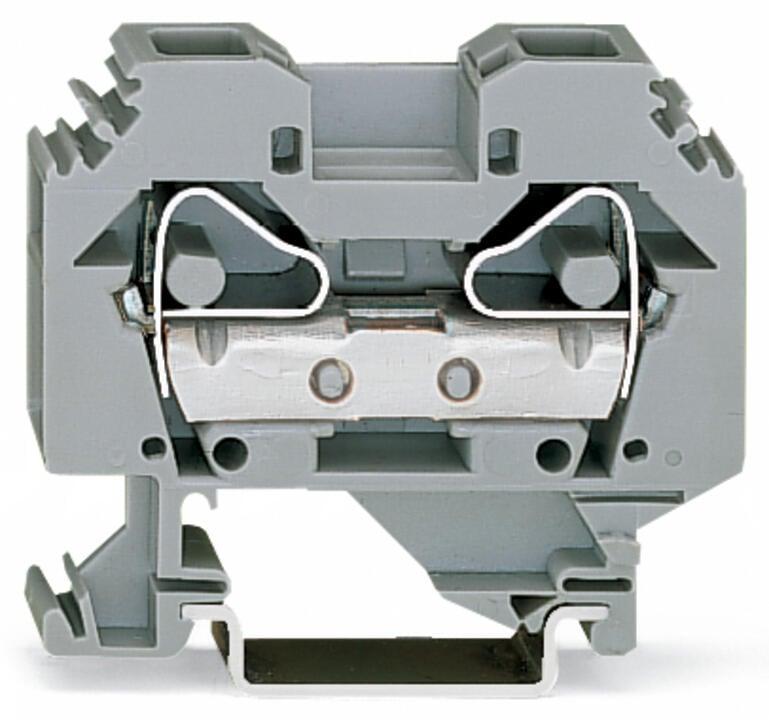

WAGO 283-104 2-conductor through terminal block
Part Number # 283-104
SKU # 2366766
$6.93 / Each
Typical price:$7.51 / Each
Wago 283-104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 283-104 |
| SKU #: | 2366766 |
| Amperage Rating: | 76 A |
| Dimensions: | 2.283 in H x 0.472 in W x 1.791 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 24 to 6 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | IN |
| Depth: | 58 mm / 2.283 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 76 A |
| Solid conductor: | 0.2 … 16 mm² / 24 … 6 AWG |
| Total number of connection points: | 2 |
| Weight: | 27.366 g |
| Width: | 12 mm / 0.472 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918298360 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.93 / Each
Typical price:$7.51 / Each
Quantity:
WAGO 283-104 2-conductor through terminal block
Brand: Wago
Part Number: 283-104
Additional Description: WAGO-283-104 2-CONDUCTOR THROUGH TERMINAL BLOCK; 16 MM; LATERAL MARKER SLOTS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 16,00 MM; BLUE 51113718 DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 16,00 MM ; BLUE 51255152
Catalog Description: 2-conductor through terminal block; 16 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 16,00 mm²; blue
283-104 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2366766Part Number #283-104UNSPSC39121410UPC04044918298360
