Brand: Wago

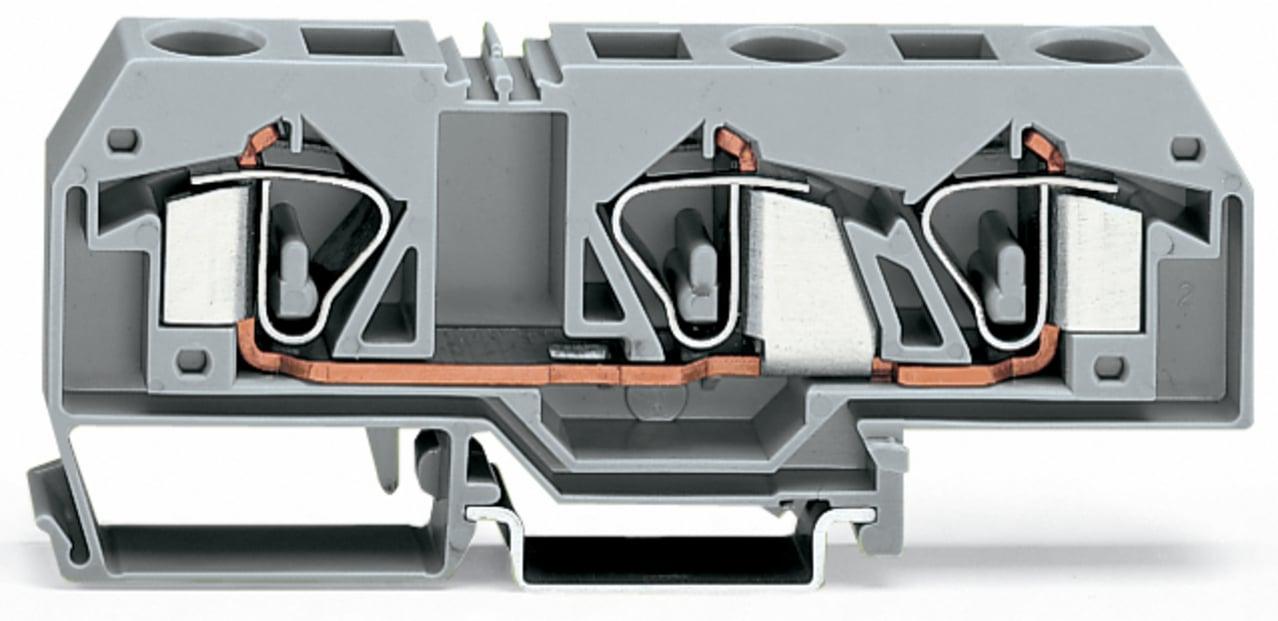

WAGO 283-671 3-conductor through terminal block
Image Disclaimers Message
Brand: Wago
WAGO 283-671 3-conductor through terminal block
Brand: Wago
WAGO 283-671 3-conductor through terminal block
Part #:283-671
SKU #: 1027373
$182.80/20EA
Key Features
Part #:283-671
SKU #: 1027373
Brand: Wago
Amperage Rating: 76 A
Dimensions: 4.1 in H x 0.47 in W x 1.47 in D
Number of Poles: 1
Power Rating: 8 kV
Series: 283
$182.80/20EA
- 3 Clamping Points
- 1 Potentials
- Front-entry wiring
Specifications
Brand: Wago
Amperage Rating: 76 A
Dimensions: 4.1 in H x 0.47 in W x 1.47 in D
Number of Poles: 1
Power Rating: 8 kV
Series: 283
Temperature Rating (Degrees F): -60 to 105 deg C
Terminal Type: Through
Type: 3-Conductor
Voltage Rating: 800 V
Wire Size: 24 to 6 AWG
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Connection type: Cage Clamp
Country of origin: DE
Depth: 104.5 mm / 4.114 inch
Insulation material: Polyamide (PA66)
Material: Polyamide (PA66)
Mounting type: 35 mm DIN Rail, DIN-35 rail
Rated current: 76 A
Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
Total number of connection points: 3
Weight: 45.331 g
Width: 12 mm / 0.472 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04044918543637
Item Features
Item FeaturesRoHS Compliant
