Part Number # 283-901
SKU # 353942
Image Disclaimers Message
283-901

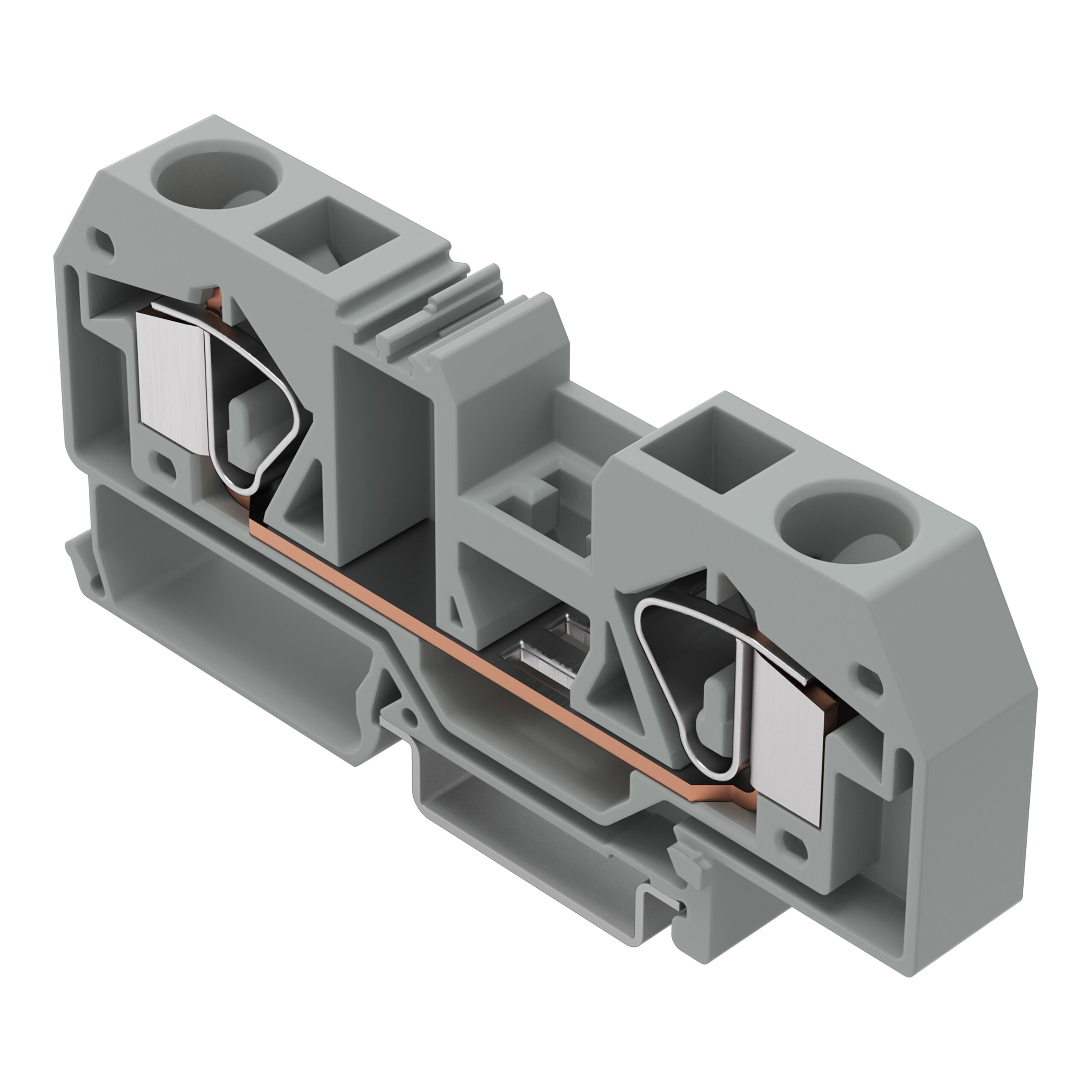

WAGO 283-901 2-conductor through terminal block
Part Number # 283-901
SKU # 353942
$142.60 / 20Each
Typical price:$154.40 / Each
Wago 283-901 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 283-901 |
| SKU #: | 353942 |
| Amperage Rating: | 76, 76 A |
| Dimensions: | 1.48 in H x 0.472 in W x 3.72 in D |
| Series: | 283 |
| Terminal Type: | Through |
| Wire Size: | 24 to 6, 24 to 6 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | DE, US |
| Depth: | 94.5 mm / 3.72 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 Insulation |
| Mounting type: | DIN Rail, DIN-35 rail |
| Rated current: | 76 A |
| Solid conductor: | 0.2 … 16 mm² / 24 … 6 AWG |
| Total number of connection points: | 2 |
| Weight: | 35.588 g |
| Width: | 12 mm / 0.472 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918297615 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$142.60 / 20Each
Typical price:$154.40 / Each
Quantity:
- WAGO Terminal Block, Series: 283, 800 V AC, 76 A, 24 to 6 AWG Wire, 0.63 to 0.67 in Wire Strip Length, Through Terminal, DIN Rail Mount, Cage Clamp, Polyamide 6.6 Insulation, Gray, 1.48 in H x 0.472 in W x 3.72 in D
283-901 Item Features
- 2 terminals
- 1 potential, front-entry wiring, 8 kV impulse voltage, 3 deg pollution
- Horizontal design, center marking
- CAGE CLAMP connection technology, operating tool actuation
- Copper conductor
- 800 V rated voltage, 600 V UL/CSA, 76 A rated current, 65 A UL, 70 A CSA
283-901 Standards
RoHS Compliant|UL94V-0 Flammability RatingSKU #353942Part Number #283-901UNSPSC39121410UPC04044918297615
