Part Number # 284-104
SKU # 2232625
284-104
WAGO 284-104 2-conductor through terminal block
Part Number # 284-104
SKU # 2232625
$4.66 / Each
Typical price:$5.05 / Each
Wago 284-104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 284-104 |
| SKU #: | 2232625 |
| Amperage Rating: | 57 A |
| Dimensions: | 2.047 in H x 0.394 in W x 1.634 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 24 to 8 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 52 mm / 2.047 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 57 A |
| Solid conductor: | 0.2 … 10 mm² / 24 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 18.157 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918323413 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.66 / Each
Typical price:$5.05 / Each
Quantity:
WAGO 284-104 2-conductor through terminal block
Brand: Wago
Part Number: 284-104
Additional Description: WAGO-284-104 2-CONDUCTOR THROUGH TERMINAL BLOCK; 10 MM ; LATERAL MARKER SLOTS; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 10,00 MM ; BLUE 51115520
Catalog Description: 2-conductor through terminal block; 10 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 10,00 mm²; blue
284-104 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2232625Part Number #284-104UNSPSC39121410UPC04044918323413

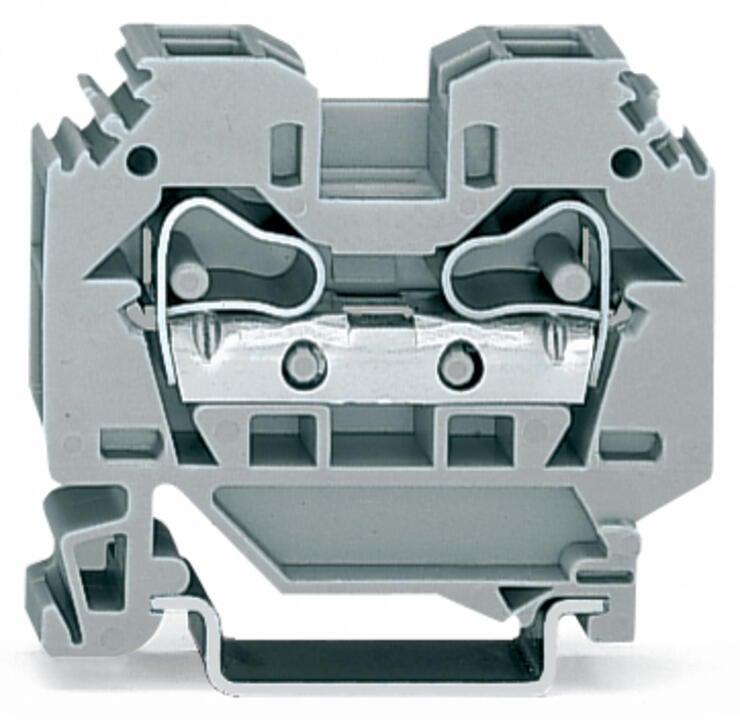

Image provided may only be a representation of final product and may include optional equipment
