284-687

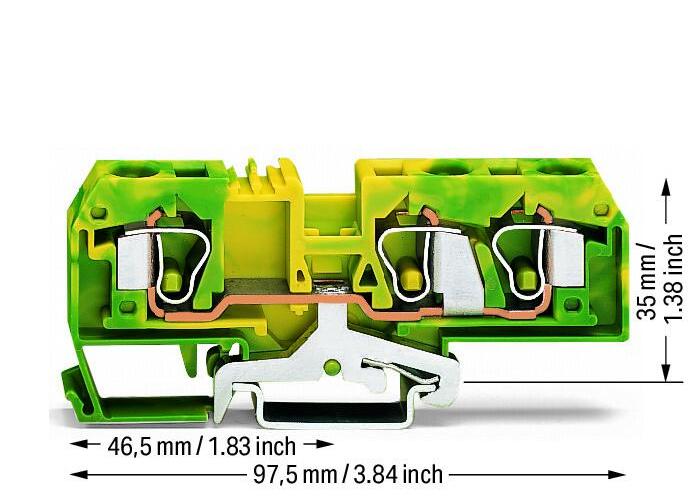

WAGO 284-687 3-conductor ground terminal block
Part Number # 284-687
SKU # 1988522
$16.18 / Each
Typical price:$17.53 / Each
Wago 284-687 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 284-687 |
| SKU #: | 1988522 |
| Dimensions: | 3.839 in H x 0.394 in W x 1.378 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 8 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 97.5 mm / 3.839 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.2 … 10 mm² / 24 … 8 AWG |
| Total number of connection points: | 3 |
| Weight: | 40.044 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454084639 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$16.18 / Each
Typical price:$17.53 / Each
Quantity:
WAGO 284-687 3-conductor ground terminal block
Brand: Wago
Part Number: 284-687
Additional Description: WAGO-284-687 3-CONDUCTOR GROUND TERMINAL BLOCK; 10 MM; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 10,00 MM; GREEN-YELLOW 51160762
Catalog Description: 3-conductor ground terminal block; 10 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 10,00 mm²; green-yellow
284-687 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #1988522Part Number #284-687UNSPSC39121410UPC04045454084639
