Part Number # 284-901
SKU # 294525
284-901

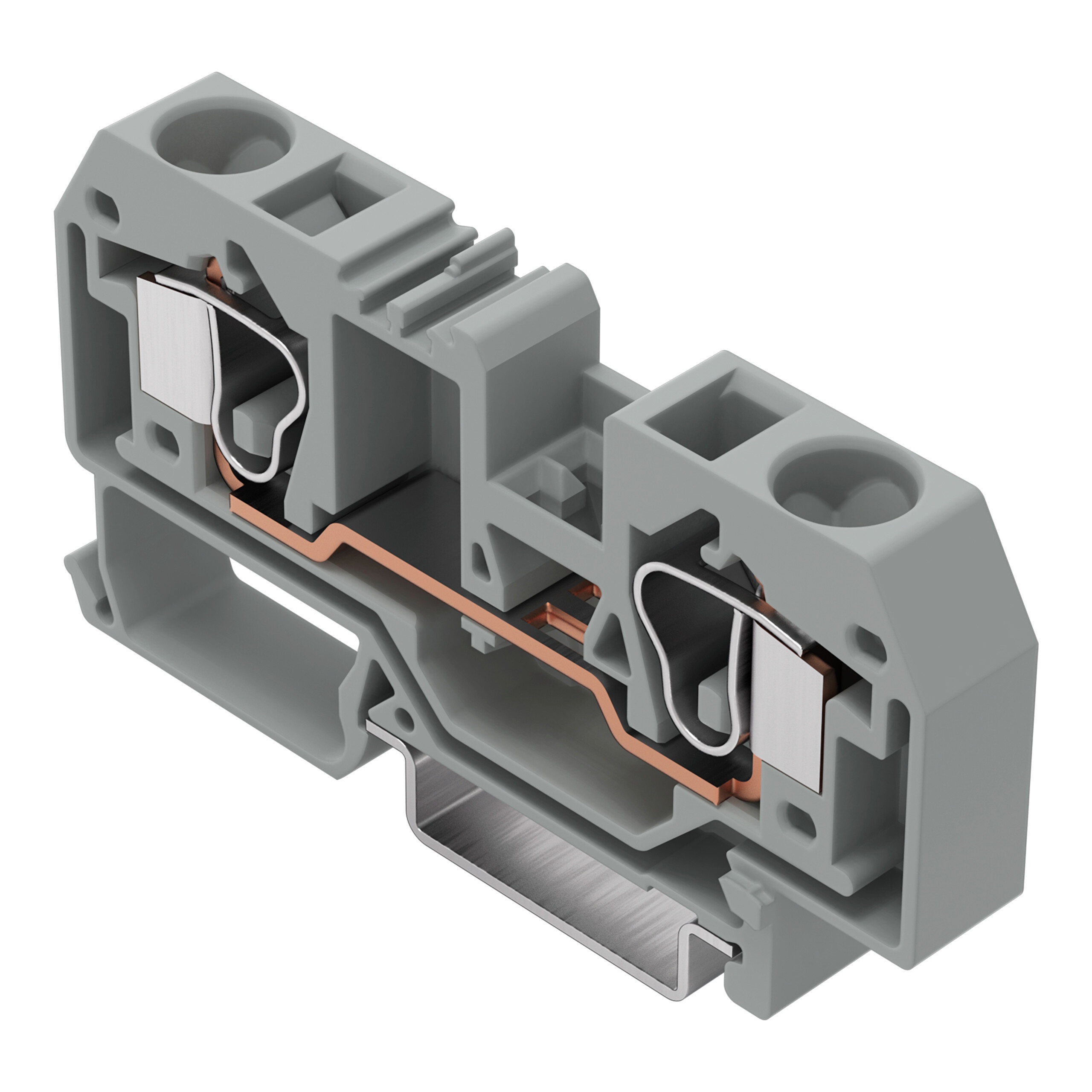

WAGO 284-901 2-conductor through terminal block
Part Number # 284-901
SKU # 294525
Wago 284-901 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 284-901 |
| SKU #: | 294525 |
| Amperage Rating: | 57, 57 A |
| Dimensions: | 1.38 in H x 0.394 in W x 3.07 in D |
| Series: | 284 |
| Terminal Type: | Through |
| Wire Size: | 24 to 8, 24 to 8 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Country of origin: | CH, DE |
| Depth: | 78 mm / 3.071 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 Insulation |
| Mounting type: | DIN Rail, DIN-35 rail |
| Rated current: | 57 A |
| Solid conductor: | 0.2 … 10 mm² / 24 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 23.100 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918305730 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 284-901 2-conductor through terminal block
Brand: Wago
Part Number: 284-901
WAGO Terminal Block, Series: 284, 800 VAC, 57 A, 24 to 8 AWG Wire, 0.47 to 0.51 in Wire Strip Length, Through Terminal, DIN Rail Mount, Cage Clamp, Polyamide 6.6 Insulation, Gray, 1.38 in H x 0.394 in W x 3.07 in D
Additional Description: WAGO-284-901 2-CONDUCTOR THROUGH TERMINAL BLOCK; 10 MM; CENTER MARKING; FOR DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP; 10,00 MM; GRAY 51114316 DIN-RAIL 35 X 15 AND 35 X 7.5; CAGE CLAMP ; 10,00 MM ; GRAY 51114316
Catalog Description: 2-conductor through terminal block; 10 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 10,00 mm²; gray
284-901 Item Features
- 2 terminals
- 1 potential, front-entry wiring, 8 kV impulse voltage, 3 deg pollution
- Horizontal design, center marking
- CAGE CLAMP connection technology, operating tool actuation
- Copper conductor
- 800 V rated voltage, 600 V UL/CSA, 57 A rated current, 50 A UL, 54 A CSA
284-901 Standards
RoHS CompliantSKU #294525Part Number #284-901UNSPSC39121410UPC04044918305730
Image provided may only be a representation of final product and may include optional equipment
