Part Number # 284-907
SKU # 1255870
Image Disclaimers Message
284-907

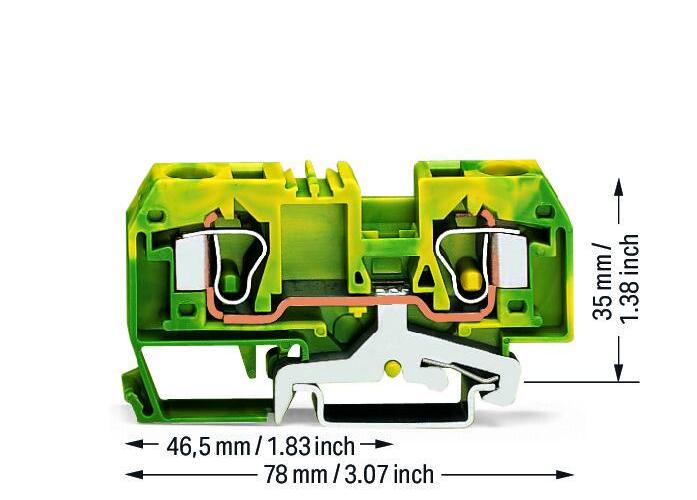

WAGO 284-907 2-conductor ground terminal block
Part Number # 284-907
SKU # 1255870
$298.50 / 25Each
Typical price:$323.25 / Each
Wago 284-907 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 284-907 |
| SKU #: | 1255870 |
| Dimensions: | 3.071 in H x 0.394 in W x 1.378 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 24 to 8 AWG |
| Actuation type: | Operating tool |
| Color: | Green-yellow, Green/Yellow |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 78 mm / 3.071 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Solid conductor: | 0.2 … 10 mm² / 24 … 8 AWG |
| Total number of connection points: | 2 |
| Weight: | 31.580 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454084646 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$298.50 / 25Each
Typical price:$323.25 / Each
Quantity:
- WAGO, 284-907, Ground Terminal Block, Operating Tool, 1 Pole, 24 to 8 AWG Wire, 0.47 to 0.51 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Green/Yellow, 3.071 in H x 0.394 in W x 1.378 in D Dimensions
284-907 Standards
IEC/EN 60947-7-2|RoHS CompliantSKU #1255870Part Number #284-907UNSPSC39121410UPC04045454084646
