Part Number # 285-1161
SKU # 2376768
Image Disclaimers Message
Brand: Wago
285-1161

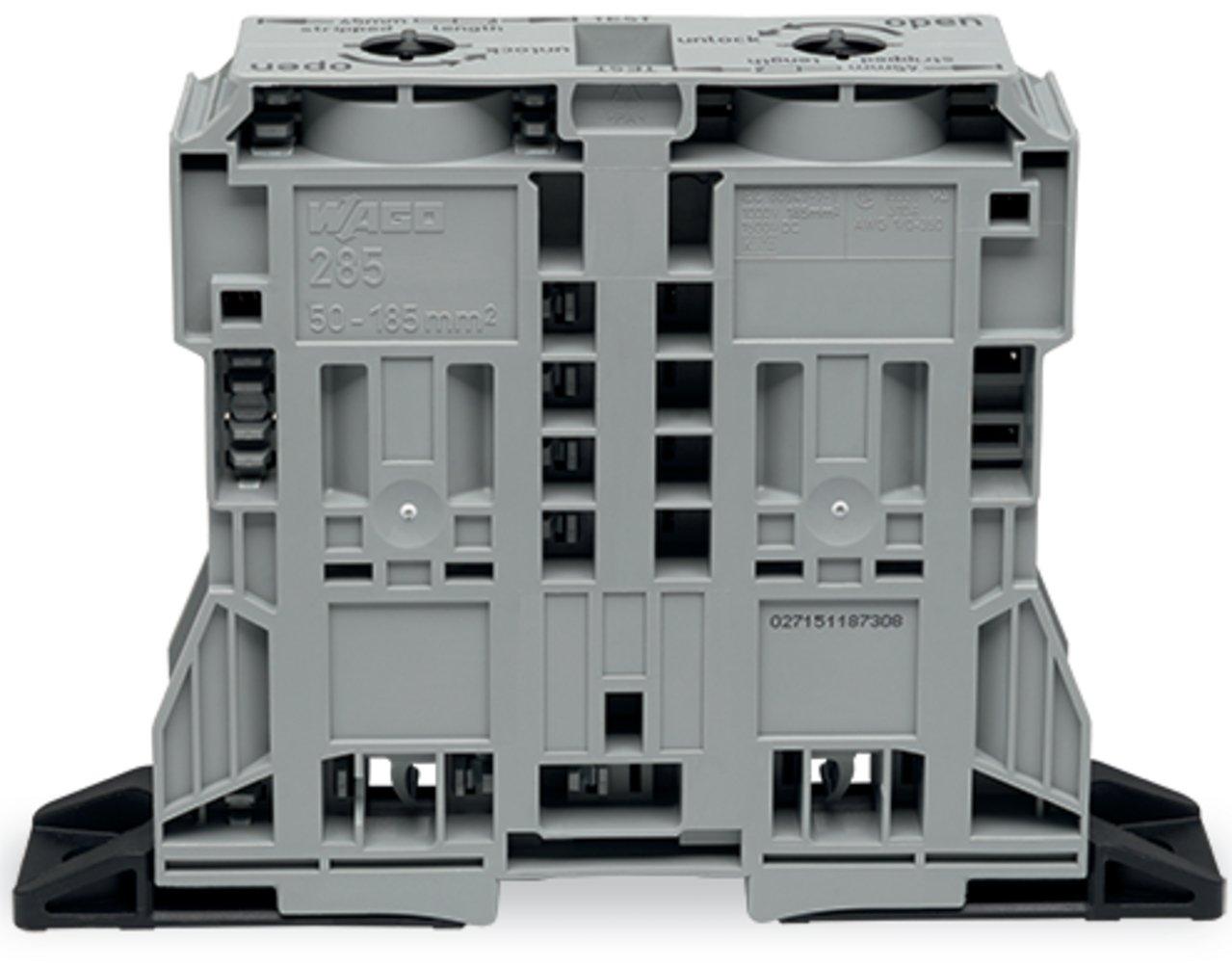

WAGO 285-1161 POWER CAGE CLAMP feedthrough terminal block
Part Number # 285-1161
SKU # 2376768
$268.69 / 4Each
Typical price:$291.08 / Each
Wago 285-1161 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 285-1161 |
| SKU #: | 2376768 |
| Amperage Rating: | 353 A |
| Dimensions: | 4.8 in H x 1.26 in W x 6.69 in D |
| Number of Poles: | 1 |
| Series: | 285 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Terminal Type: | Through |
| Type: | Cage Clamp |
| Wire Size: | 1/0 AWG to 300 kcmil |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | POWER CAGE CLAMP |
| Connection type: | Cage Clamp |
| Country of origin: | DE |
| Depth: | 170 mm / 6.693 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide (PA66) |
| Mounting type: | Flange, Mounting flange, Surface |
| Nominal cross-section: | 185 mm² |
| Rated current: | 353 A |
| Solid conductor: | 50 … 185 mm² / 1/0 AWG … 350 kcmil |
| Stranded conductor: | 50 … 185 mm² / 1/0 AWG … 350 kcmil |
| Total number of connection points: | 2 |
| Weight: | 552.000 g |
| Width: | 32 mm / 1.26 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143424141 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$268.69 / 4Each
Typical price:$291.08 / Each
Quantity:
- WAGO, 285-1161, Terminal Block, Cage Clamp, Series: 285, 1 kV, 353 A, 12 kV Power, 1 Pole, 1/0 AWG to 300 kcmil Wire, 1.77 to 1.85 in Wire Strip Length, Through Terminal, Surface Mounting, Cage Clamp Connection, -60 to 105 deg C, Polyamide (PA66), Gray, 4.8 in H x 1.26 in W x 6.69 in D Dimensions
285-1161 Item Features
- 2 Clamping Points
- 1 Potentials
- Side-entry wiring
285-1161 Standards
RoHS CompliantSKU #2376768Part Number #285-1161UNSPSC39121410UPC04055143424141
