285-1181

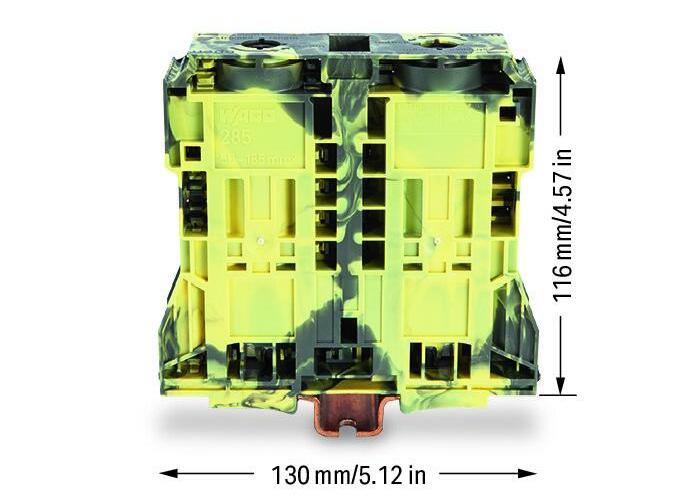

WAGO 285-1181 POWER CAGE CLAMP feedthrough terminal block
Part Number # 285-1181
SKU # 2381526
$69.88 / Each
Typical price:$75.70 / Each
Wago 285-1181 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 285-1181 |
| SKU #: | 2381526 |
| Amperage Rating: | 353 A |
| Dimensions: | 5.118 in H x 1.26 in W x 4.567 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Connection technology: | POWER CAGE CLAMP |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 133 mm / 5.236 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 185 mm² |
| Rated current: | 353 A |
| Solid conductor: | 50 … 185 mm² / 1/0 AWG … 350 kcmil |
| Stranded conductor: | 50 … 185 mm² / 1/0 AWG … 350 kcmil |
| Total number of connection points: | 2 |
| Weight: | 534.900 g |
| Width: | 32 mm / 1.26 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04055143418508 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$69.88 / Each
Typical price:$75.70 / Each
Quantity:
- WAGO, 285-1181, Conductor Terminal Block, Operating Tool, 1 kV, 353 A, 1 Pole, 1.77 to 1.85 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Dark Gray/Yellow, 5.118 in H x 1.26 in W x 4.567 in D Dimensions
285-1181 Standards
CSA 22.2 No 158|IEC/EN 60947-7-1|DIN 35|RoHS CompliantSKU #2381526Part Number #285-1181UNSPSC39121410UPC04055143418508
