Part Number # 285-607
SKU # 2135883
285-607

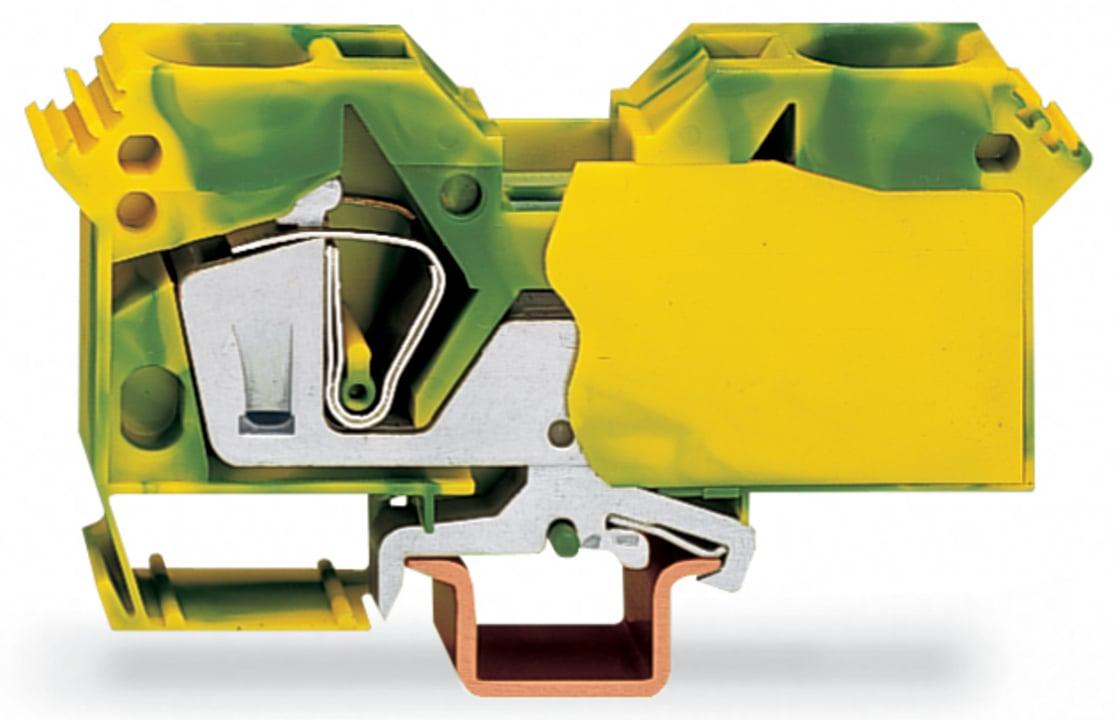

WAGO 285-607 POWER CAGE CLAMP ground terminal block
Part Number # 285-607
SKU # 2135883
Wago 285-607 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 285-607 |
| SKU #: | 2135883 |
| Dimensions: | 4.547 in H x 0.63 in W x 2.067 in D |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Depth: | 115.5 mm / 4.547 inch |
| Insulation material: | Polyamide (PA66) |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Solid conductor: | 6 … 35 mm² / 8 … 2 AWG |
| Total number of connection points: | 2 |
| Weight: | 152.283 g |
| Width: | 16 mm / 0.63 inch |
| Wiring type: | Front-entry wiring |
| UNSPSC: | 39121410 |
| UPC: | 04045454116101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 285-607 POWER CAGE CLAMP ground terminal block
Brand: Wago
Part Number: 285-607
Additional Description: WAGO-285-607 2-CONDUCTOR GROUND TERMINAL BLOCK; 35 MM; LATERAL MARKER SLOTS; ONLY FOR DIN 35 X 15 RAIL; CAGE CLAMP; 35,00 MM; GREEN-YELLOW 51163738 35 MM ; LATERAL MARKER SLOTS; ONLY FOR DIN 35 X 15 RAIL; CAGE CLAMP ; 35,00 MM ; GREEN-YELLOW GRND 51163738
Catalog Description: 2-conductor ground terminal block; 35 mm²; lateral marker slots; only for DIN 35 x 15 rail; CAGE CLAMP®; 35,00 mm²; green-yellow
285-607 Standards
IEC/EN 60947-7-2|DIN 35|RoHS CompliantSKU #2135883Part Number #285-607UNSPSC39121410UPC04045454116101
Image provided may only be a representation of final product and may include optional equipment
