285-637

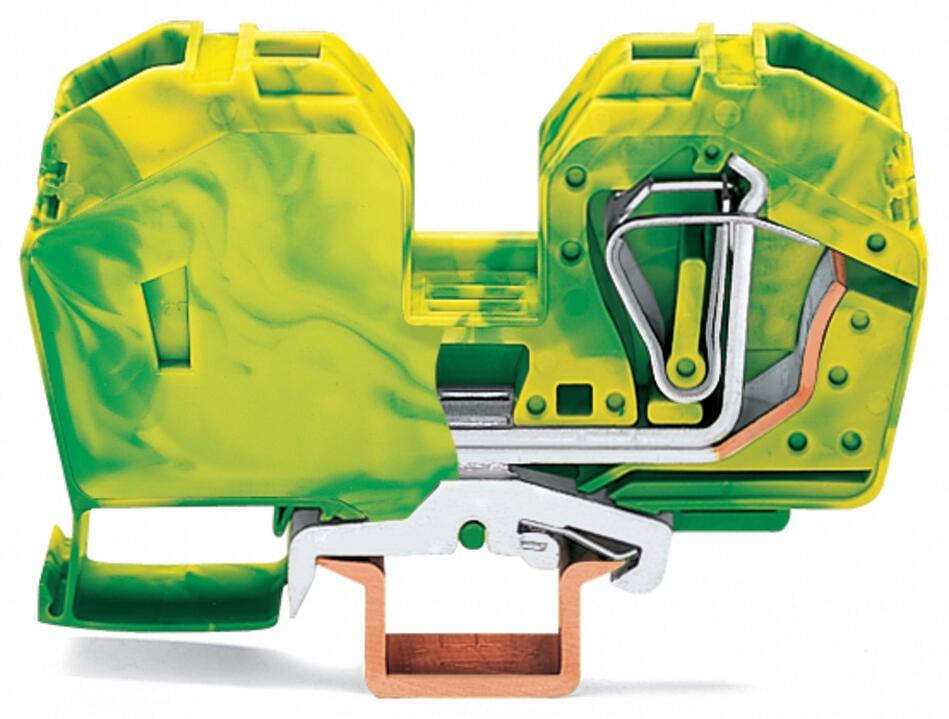

WAGO 285-637 POWER CAGE CLAMP ground terminal block
Part Number # 285-637
SKU # 2139362
$20.82 / Each
Typical price:$22.56 / Each
Wago 285-637 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 285-637 |
| SKU #: | 2139362 |
| Dimensions: | 3.937 in H x 0.63 in W x 2.087 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 10 to 2 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | PL |
| Depth: | 100 mm / 3.937 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal cross-section: | 35 mm² |
| Solid conductor: | 6 … 35 mm² / 8 … 2 AWG |
| Total number of connection points: | 2 |
| Weight: | 107.839 g |
| Width: | 16 mm / 0.63 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454218768 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.82 / Each
Typical price:$22.56 / Each
Quantity:
- WAGO, 285-637, Ground Terminal Block, Operating Tool, 1 Pole, 10 to 2 AWG Wire, 0.91 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Green/Yellow, 3.937 in H x 0.63 in W x 2.087 in D Dimensions
285-637 Standards
IEC/EN 60947-7-2|DIN 35|RoHS CompliantSKU #2139362Part Number #285-637UNSPSC39121410UPC04045454218768
