Brand: Wago

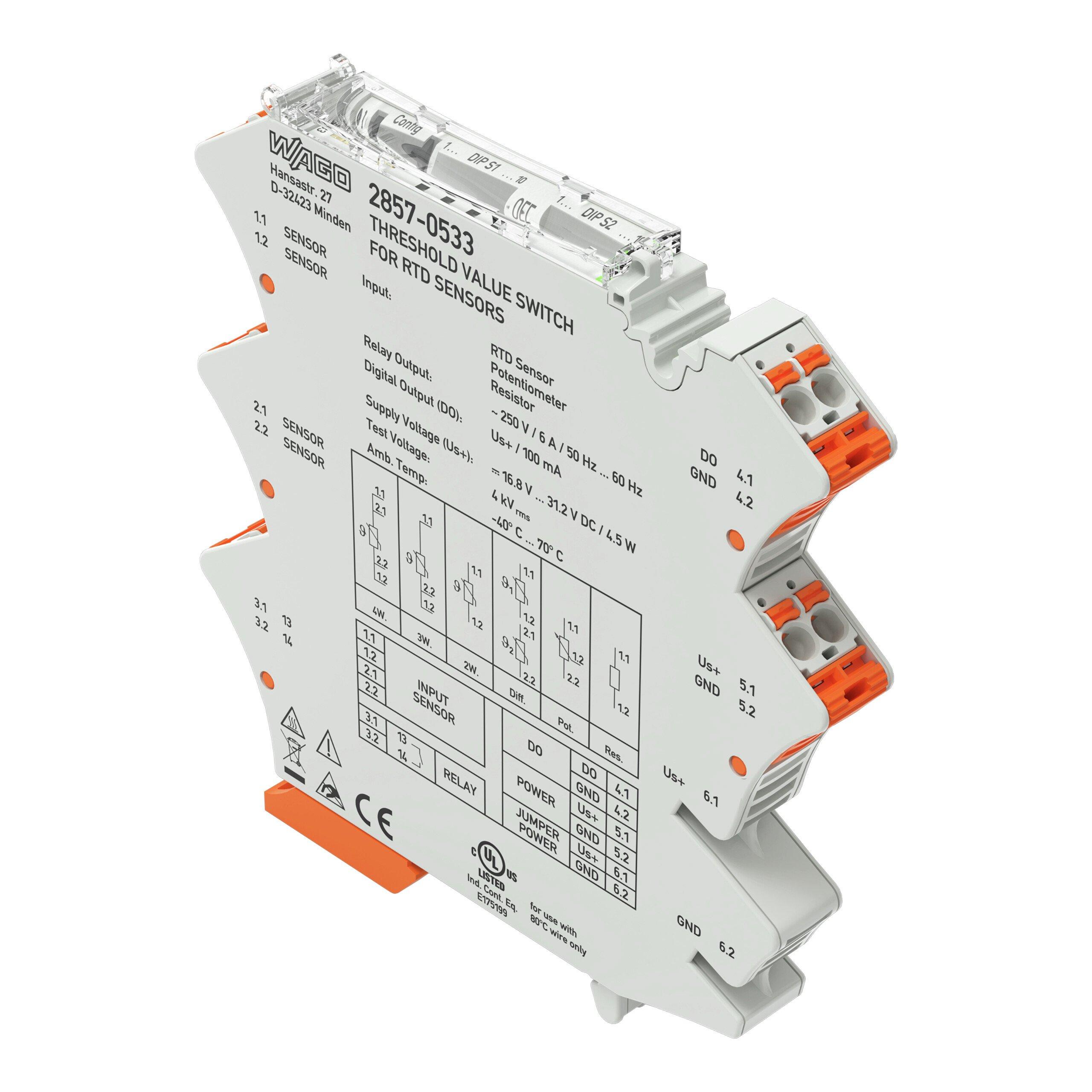

WAGO 2857-533 JUMPFLEX signal conditioner
Image Disclaimers Message
Brand: Wago
WAGO 2857-533 JUMPFLEX signal conditioner
Brand: Wago
WAGO 2857-533 JUMPFLEX signal conditioner
Part #:2857-533
SKU #: 2308009
$400.72/EA
Key Features
Part #:2857-533
SKU #: 2308009
Brand: Wago
Dimensions: 4.331 in H x 0.492 in W x 4.213 in D
Input Voltage: 300 VAC
Series: 2857
Specifications: 24 to 12 AWG
Temperature Rating (Degrees F): -40 to 70 deg C
$400.72/EA
- Both digital signal output and relay with make contact react to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values)
- Configurable RTD factor
- Adjustable software filter
- Input/output response simulation via configuration display
- Safe three-way isolation with 4 kV test voltage per EN 61010-1
Specifications
Brand: Wago
Dimensions: 4.331 in H x 0.492 in W x 4.213 in D
Input Voltage: 300 VAC
Series: 2857
Specifications: 24 to 12 AWG
Temperature Rating (Degrees F): -40 to 70 deg C
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Country of origin: DE
Depth: 110 mm / 4.331 inch
Hysteresis: Adjustable via DIP switch or software
Input signal type: RTD sensors || Potentiometers || Resistor
Mounting type: DIN Rail, DIN-35 rail
Number of make/switch-on contacts: 1
Output current: 100 mA
Output voltage: 250 VAC
Power consumption at nominal supply voltage: ≤ 40 mA (+ IDO)
Power supply type: 24 VDC
Sensor connection: 2-wire; 3-wire; 4-wire; differential
Sensor power supply (RTD) (max.): ≤ 0.5 mA
Sensor types (RTD): Pt100 || Pt200 || Pt500 || Pt1000 || Pt5000 || Pt10000 || Pt10 … Pt20000
Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
Standards/Specifications: EN 61010-1; EN 61373
Supply voltage range: ±30 %
WAGO Connector: picoMAX® 5.0
Weight: 86.500 g
Width: 12.5 mm / 0.492 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43232306
UPC: 04050821676973
Item Features
Item FeaturesRoHS Compliant|CE Marked|IP20|EN 61000-6-4|EN 61000-6-2|EN 61010-2-030|EN 61326-2-3|EN 50121-3-2|EN 61010-1|EN 61373
