Part Number # 286-328
SKU # 2186169
Image Disclaimers Message
Brand: Wago
286-328

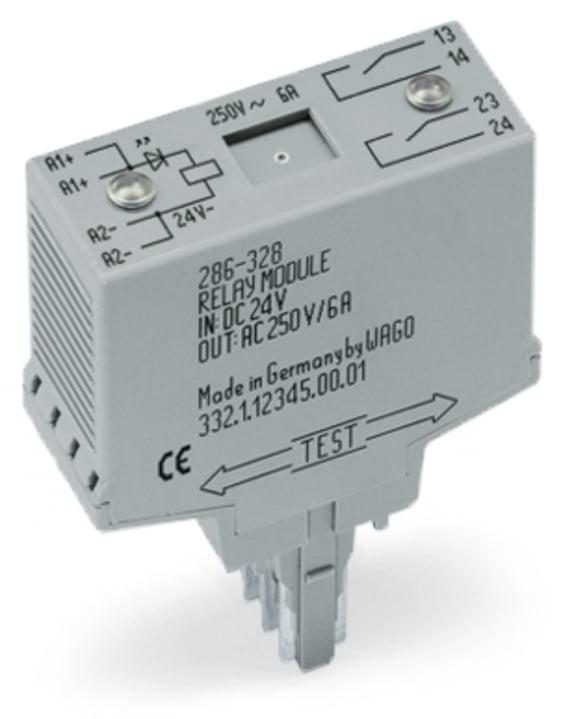

WAGO 286-328 Relay module
Part Number # 286-328
SKU # 2186169
$102.11 / Each
Wago 286-328 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 286-328 |
| SKU #: | 2186169 |
| Amperage Rating: | 8 mA |
| Coil Voltage: | 24 VDC |
| Contact Rating: | 6 A |
| Dimensions: | 3.248 in H x 0.787 in W x 2.047 in D |
| Series: | 286 |
| Temperature Rating (Degrees F): | -25 to 40 deg C |
| Terminal Type: | Plug-In |
| Color: | Gray |
| Country of origin: | DE |
| Depth: | 52 mm / 2.047 inch |
| Mechanical life: | 50 x 106 switching operations |
| Mounting type: | Pluggable, Pluggable module for receptacle terminal blocks |
| Number of make/switch-on contacts: | 2 |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Standards/Specifications: | EN 60664-1 |
| Status indicator: | Red LED |
| Weight: | 28.500 g |
| Width: | 20 mm / 0.787 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454319540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$102.11 / Each
Quantity:
WAGO 286-328 Relay module
Brand: Wago
Part Number: 286-328
Additional Description: WAGO-286-328 REL DC 24V, GRAY 51176512
Catalog Description: Relay module; Nominal input voltage: 24 VDC; 2 make contact; Limiting continuous current: 6 A; Red status indicator; Module width: 20 mm; gray
286-328 Standards
RoHS CompliantSKU #2186169Part Number #286-328UNSPSC43232306UPC04045454319540
