Part Number # 286-368
SKU # 2339957
Image Disclaimers Message
Wago 286-368 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 286-368 |
| SKU #: | 2339957 |
| Amperage Rating: | 5 A |
| Coil Voltage: | 250 V |
| Dimensions: | 3.24 in H x 0.39 in W x 2.04 in D |
| Enclosure Type: | IP20 |
| Series: | 286 |
| Temperature Rating (Degrees F): | -25 to 40 deg C |
| Color: | Gray |
| Country of origin: | DE |
| Depth: | 52 mm / 2.047 inch |
| Mechanical life: | 5 x 106 switching operations |
| Mounting type: | Pluggable, Pluggable module for receptacle terminal blocks |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Standards/Specifications: | EN 60664-1 |
| Status indicator: | Red LED |
| Weight: | 19.075 g |
| Width: | 10 mm / 0.394 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454384036 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$61.92 / Each
Quantity:

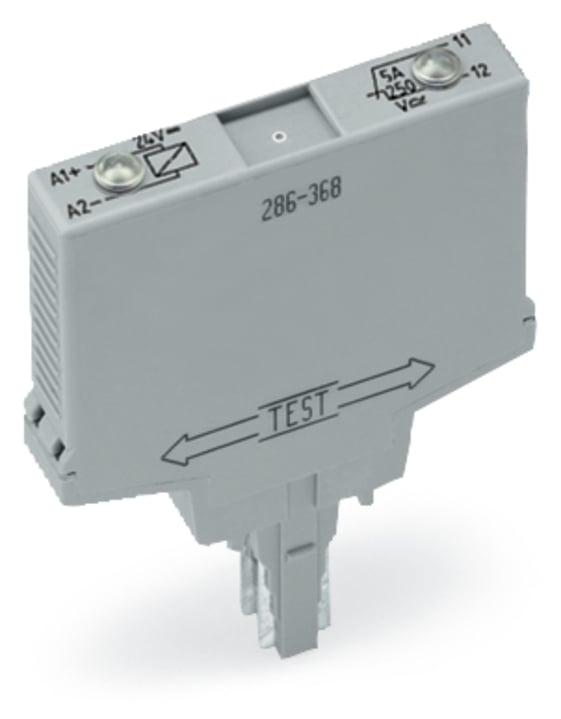

WAGO 286-368 Relay module
Brand: Wago
Part Number: 286-368
WAGO, 286-368, Relay Module, Series: 286, 5 A, 4 kV Power, 250 V Coil, Pluggable Mounting, IP20 Enclosure, -25 to 40 deg C, 3.24 in H x 0.39 in W x 2.04 in D Dimensions
Additional Description: WAGO-286-368 REL DC 24V GRA 51180340
Catalog Description: Relay module; Nominal input voltage: 24 VDC; 1 break contact; Limiting continuous current: 5 A; Red status indicator; Module width: 10 mm; gray
286-368 Standards
RoHS Compliant|EN 60664-1SKU #2339957Part Number #286-368UNSPSC43232306UPC04045454384036
