Part Number # 288-312
SKU # 2201136
Image Disclaimers Message
Brand: Wago
288-312

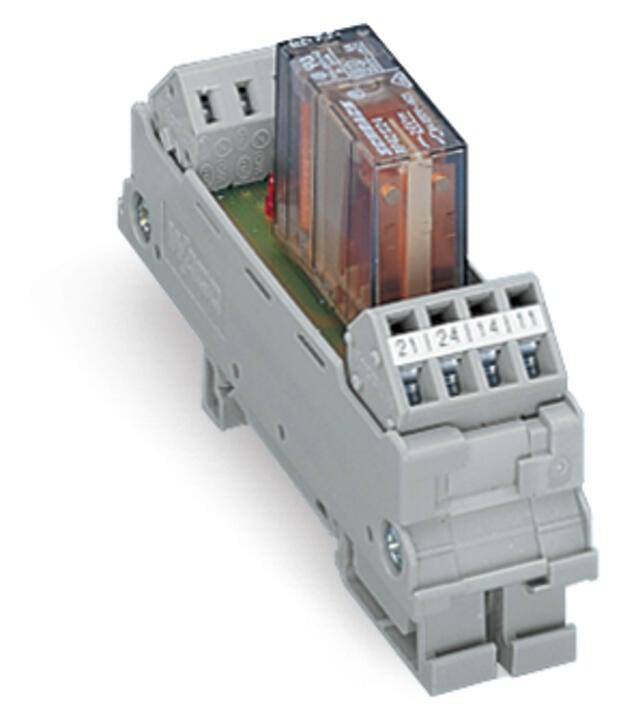

WAGO 288-312 Relay module
Part Number # 288-312
SKU # 2201136
$88.36 / Each
Wago 288-312 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 288-312 |
| SKU #: | 2201136 |
| Amperage Rating: | 6 A |
| Dimensions: | 3.346 in H x 0.886 in W x 1.89 in D |
| Temperature Rating (Degrees F): | -25 to 50 deg C |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 85 mm / 3.346 inch |
| Mechanical life: | 20 x 106 switching operations |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 2 |
| Rated voltage: | 250 V |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Standards/Specifications: | EN 60664-1 |
| Weight: | 46.550 g |
| Width: | 22.5 mm / 0.886 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454468293 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$88.36 / Each
Quantity:
- WAGO, 288-312, Relay Module, 24 V DC, 6 A, -25 to 50 deg C, Clamp Connection, 35 mm DIN Rail Mounting, Gray, 3.346 in H x 0.886 in W x 1.89 in D Dimensions
288-312 Standards
EN 60664-1|RoHS CompliantSKU #2201136Part Number #288-312UNSPSC43232306UPC04045454468293
