Part Number # 288-437
SKU # 1255848
288-437

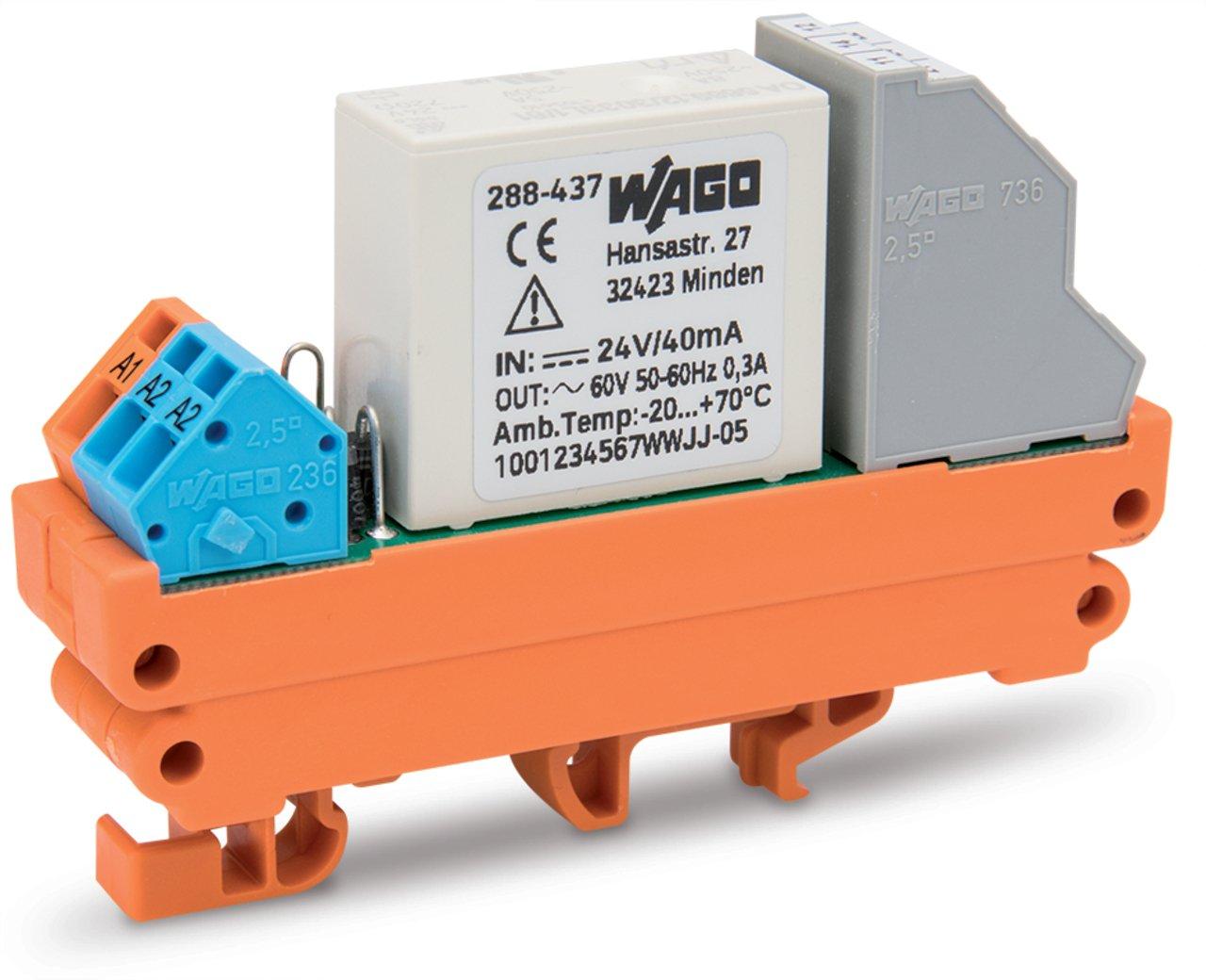

WAGO 288-437 Relay module with driven contacts
Part Number # 288-437
SKU # 1255848
$118.25 / Each
Wago 288-437 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 288-437 |
| SKU #: | 1255848 |
| Amperage Rating: | 36 mA |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Form: | 2 Form C DPDT |
| Contact Rating: | 5 A |
| Dimensions: | 2.953 in H x 0.748 in W x 1.496 in D |
| Enclosure Type: | IP00 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Terminal Type: | Spring |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 75 mm / 2.953 inch |
| Mechanical life: | 50 x 106 switching operations |
| Mounting type: | DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 2 |
| Protection type: | IP00 |
| Rated voltage: | 250 V |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Standards/Specifications: | EN 61010-2-201; EN 50205 |
| Weight: | 44.200 g |
| Width: | 19 mm / 0.748 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454560133 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$118.25 / Each
Quantity:
WAGO 288-437 Relay module with driven contacts
Brand: Wago
Part Number: 288-437
Additional Description: WAGO-288-437 REL-FGC DC 24V 51191607
Catalog Description: Relay module with driven contacts; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 5 A; Module width: 19 mm; 2,50 mm²
288-437 Standards
RoHS Compliant|IP00|EN 61010-2-201|EN 61810-3SKU #1255848Part Number #288-437UNSPSC43232306UPC04045454560133
