Part Number # 288-870/000-030
SKU # 2378636
Image Disclaimers Message
288-870/000-030

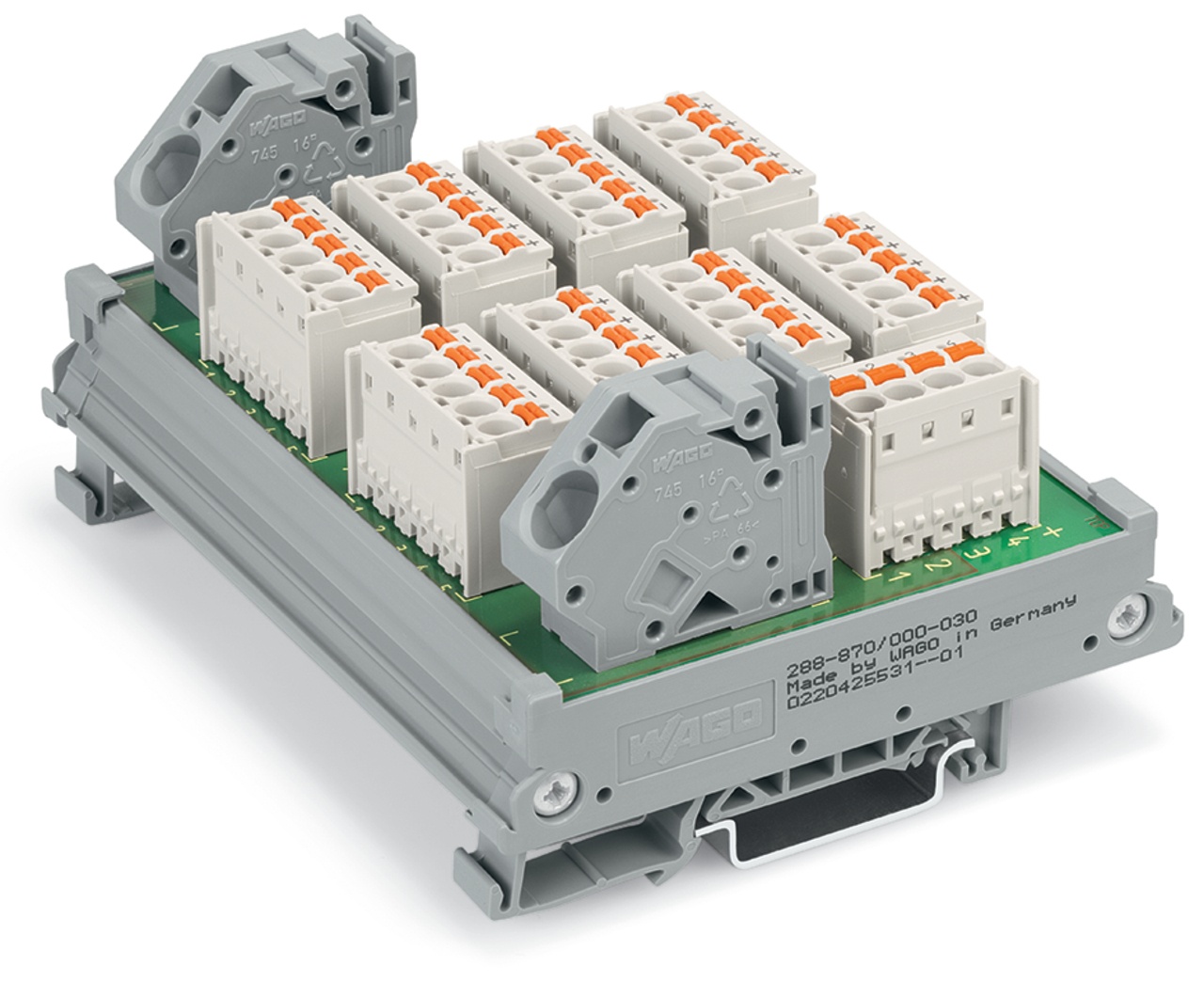

WAGO 288-870/000-030 Potential distribution module
Part Number # 288-870/000-030
SKU # 2378636
$106.67 / Each
Wago 288-870/000-030 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 288-870/000-030 |
| SKU #: | 2378636 |
| Dimensions: | 3.346 in H x 3.937 in W x 1.929 in D |
| Number of Poles: | 4 |
| Wire Size: | 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 85 mm / 3.346 inch |
| Mounting type: | DIN-35 rail |
| Solid conductor: | 0.2 … 16 mm² / 24 … 6 AWG |
| WAGO Connector: | WAGO 745 Series |
| Weight: | 140.393 g |
| Width: | 100 mm / 3.937 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04055143107662 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$106.67 / Each
Quantity:
WAGO 288-870/000-030 Potential distribution module
Brand: Wago
Part Number: 288-870/000-030
Additional Description: WAGO-288-870/000-030 (D) POTENTIAL DISTRIBUTION MODULE; 4 POTENTIALS; WITH 6 CONNECTION POINTS EACH; WITH 22 GROUND CLAMPING POINTS 51302471 pots
Catalog Description: Potential distribution module; 4 potentials; with 6 connection points each; with 22 ground clamping points
288-870/000-030 Item Features
- May be used with electronic circuit breakers for 24 and 0 VDC power distribution, as a substitute for rail-mount terminal blocks
- Optional coding pins (2092-1610) protect against any inadvertent mixing of female headers
- Optional gripping plates with sliding connector release (2092-1601/002-000 or 2092-1602/002-000) provide conductor strain relief
- 0 V may be supplied to the adjancent modules via comb-style jumper bar (745-682)
288-870/000-030 Standards
RoHS CompliantSKU #2378636Part Number #288-870/000-030UNSPSC43232306UPC04055143107662
