289-103
WAGO 289-103 Component module with diode
Part Number # 289-103
SKU # 2325171
$75.16 / Each
Wago 289-103 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-103 |
| SKU #: | 2325171 |
| Dimensions: | 1.67 in W x 2.46 in D |
| Type: | Component Module with Diode |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 65.5 mm / 2.579 inch |
| Leakage current: | 5 µA |
| Material: | Polyamide |
| Mounting type: | Mounting on DIN-rail via DIN-rail adapter |
| Operating voltage: | ≤ AC/DC 100 V |
| Protection type: | IP00* |
| Rated voltage: | 250 V |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| WAGO Connector: | WAGO 236 Series |
| Weight: | 18.954 g |
| Width: | 47 mm / 1.85 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454569372 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$75.16 / Each
Quantity:
WAGO 289-103 Component module with diode
Brand: Wago
Part Number: 289-103
Additional Description: WAGO-289-103 COMPONENT MODULE-D 8X P600B 51192220

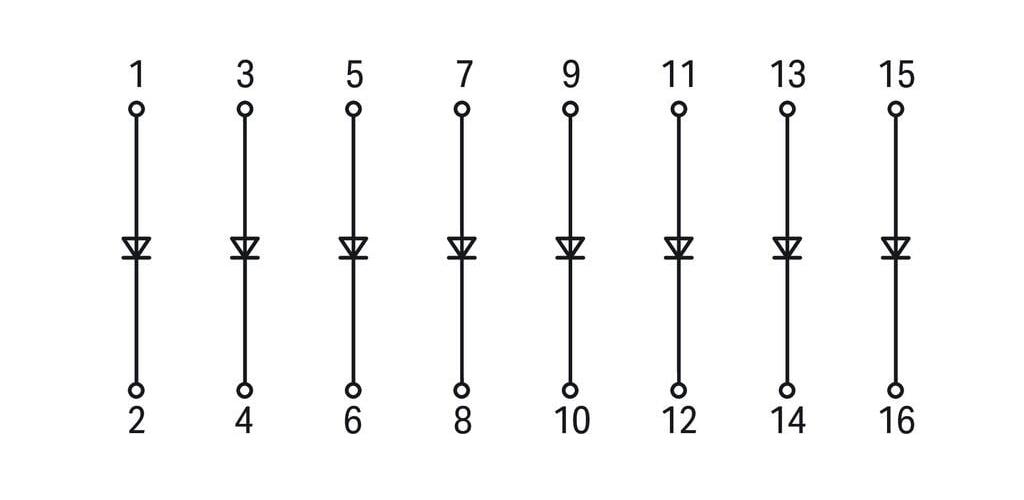

Catalog Description: Component module with diode; with 8 pcs; Diode P600B; 2,50 mm²
289-103 Standards
EN 61010-2-201|RoHS Compliant|IP00SKU #2325171Part Number #289-103UNSPSC43232306UPC04045454569372
