Part Number # 289-111
SKU # 2260395
Image Disclaimers Message
289-111
WAGO 289-111 Component module with diode
Part Number # 289-111
SKU # 2260395
$50.45 / Each
Wago 289-111 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-111 |
| SKU #: | 2260395 |
| Dimensions: | 1.67 in W x 2.46 in D |
| Type: | Component Module with Diode |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 65.5 mm / 2.579 inch |
| Leakage current: | 50 µA |
| Material: | Polyamide |
| Mounting type: | Mounting on DIN-rail via DIN-rail adapter |
| Operating voltage: | ≤ AC/DC 250 V |
| Protection type: | IP00* |
| Rated voltage: | 250 V |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| WAGO Connector: | WAGO 236 Series |
| Weight: | 25.600 g |
| Width: | 47 mm / 1.85 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454192761 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$50.45 / Each
Quantity:
WAGO 289-111 Component module with diode
Brand: Wago
Part Number: 289-111
Additional Description: WAGO-289-111 CM-D 14X 1N4007 51168150

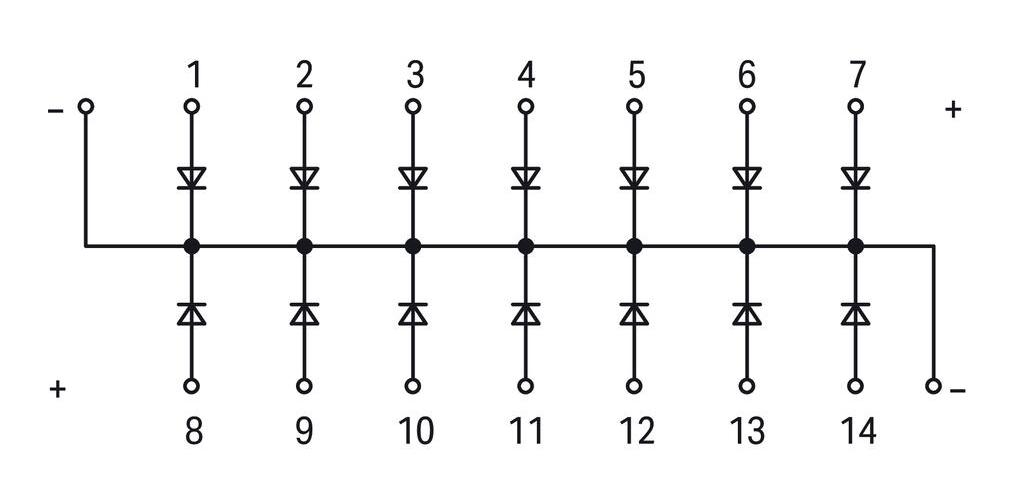

Catalog Description: Component module with diode; with 14 pcs; Diode 1N4007; with common cathode; 2,50 mm²
289-111 Standards
RoHS Compliant|IP00SKU #2260395Part Number #289-111UNSPSC43232306UPC04045454192761
