Part Number # 289-178
SKU # 2246447
Image Disclaimers Message
Brand: Wago
289-178

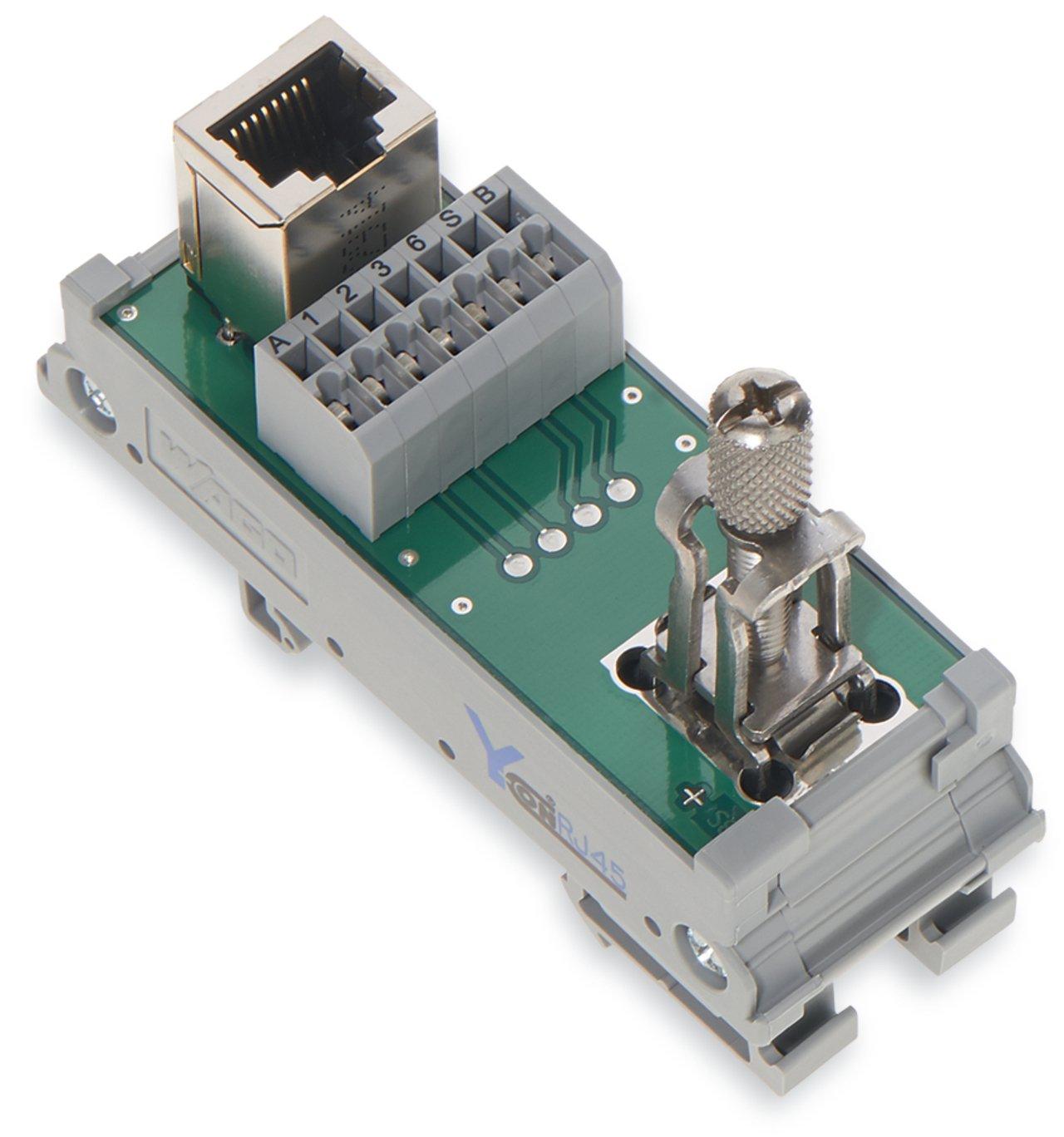

WAGO 289-178 Interface module
Part Number # 289-178
SKU # 2246447
$95.10 / Each
Wago 289-178 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-178 |
| SKU #: | 2246447 |
| Amperage Rating: | 2.1 A |
| Dimensions: | 3.346 in H x 1.181 in W x 2.638 in D |
| Number of Poles: | 10, 7 |
| Series: | 289 |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Spring |
| Wire Size: | 28 to 14 AWG |
| Connection cable: | Cat. 5 (min.) |
| Country of origin: | DE |
| Depth: | 85 mm / 3.346 inch |
| Insulation resistance: | ≥ 500 MΩ |
| Mounting type: | DIN Rail, DIN-35 rail |
| Operating voltage: | ≤ AC 35 V; ≤ DC 50 V |
| WAGO Shield Clamping Saddle: | 11 mm wide; cable diameter up to 8 mm |
| Weight: | 51.732 g |
| Width: | 30 mm / 1.181 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04045454326142 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$95.10 / Each
Quantity:
- WAGO, 289-178, Interface Module, Series: 289, 35 VAC, 50 VDC, 2.1 A, 10, 7 Pole, 28 to 14 AWG Wire, 0.2 to 0.24 in Wire Strip Length, Spring Terminal, DIN Rail Mounting, -40 to 85 deg C, 3.346 in H x 1.181 in W x 2.638 in D Dimensions
289-178 Standards
RoHS CompliantSKU #2246447Part Number #289-178UNSPSC32151603UPC04045454326142
