Part Number # 289-548
SKU # 2231123
Wago 289-548 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-548 |
| SKU #: | 2231123 |
| Dimensions: | 3.346 in H x 4.016 in W x 1.339 in D |
| Number of Poles: | 37 |
| Type: | 2-Row |
| Wire Size: | 28 to 12 AWG |
| Depth: | 85 mm / 3.346 inch |
| For mating connector: | With solder contact |
| Operating voltage: | ≤ AC/DC 125 V |
| Performance level: | 2 / 200 mating cycles |
| Protection type: | IP20 |
| Rated voltage: | 125 V |
| Standards/Specifications: | EN 61010-2-201 |
| Strain relief: | UNC 4-40 stud bolt |
| Weight: | 109.900 g |
| Width: | 102 mm / 4.016 inch |
| UNSPSC: | 32151603 |
| UPC: | 04045454366971 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$125.35 / Each
Quantity:
WAGO 289-548 Interface module
Brand: Wago
Part Number: 289-548
Additional Description: WAGO-289-548 IM SUB-D M 51179470

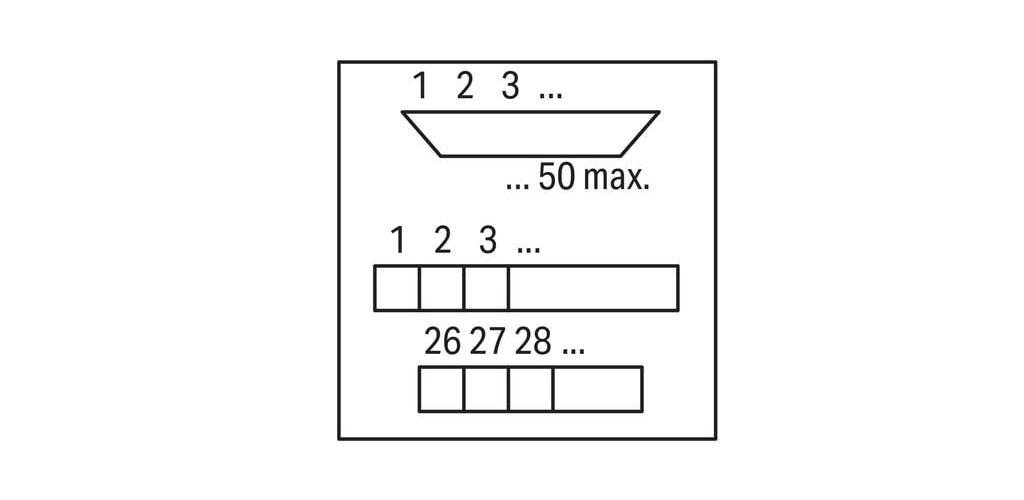

Catalog Description: Interface module; with solder pin; Male connector; 37-pole; Mating connector with solder connection; Vertical mounting; PCB terminal blocks, double-row; in mounting carrier; 2,50 mm²
289-548 Standards
EN 61010-2-201|RoHS Compliant|IP20SKU #2231123Part Number #289-548UNSPSC32151603UPC04045454366971
Image provided may only be a representation of final product and may include optional equipment
