Part Number # 289-555
SKU # 2244869
Image Disclaimers Message
Wago 289-555 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-555 |
| SKU #: | 2244869 |
| Amperage Rating: | 2 A |
| Dimensions: | 3.34 in H x 1.49 in W x 1.33 in D |
| Series: | 289 |
| Temperature Rating (Degrees F): | -20 to 50 deg C |
| Terminal Type: | Cage |
| Type: | Female Connector |
| Country of origin: | DE |
| Depth: | 85 mm / 3.346 inch |
| For mating connector: | With solder contact |
| Material: | Au/Ni |
| Mounting type: | DIN-35 rail |
| Operating voltage: | ≤ AC/DC 125 V |
| Performance level: | 2 / 200 mating cycles |
| Protection type: | IP20 |
| Rated voltage: | 125 V |
| Standards/Specifications: | EN 61010-2-201 |
| Strain relief: | UNC 4-40 stud bolt |
| Weight: | 46.800 g |
| Width: | 38 mm / 1.496 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04045454371180 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$68.57 / Each
Quantity:

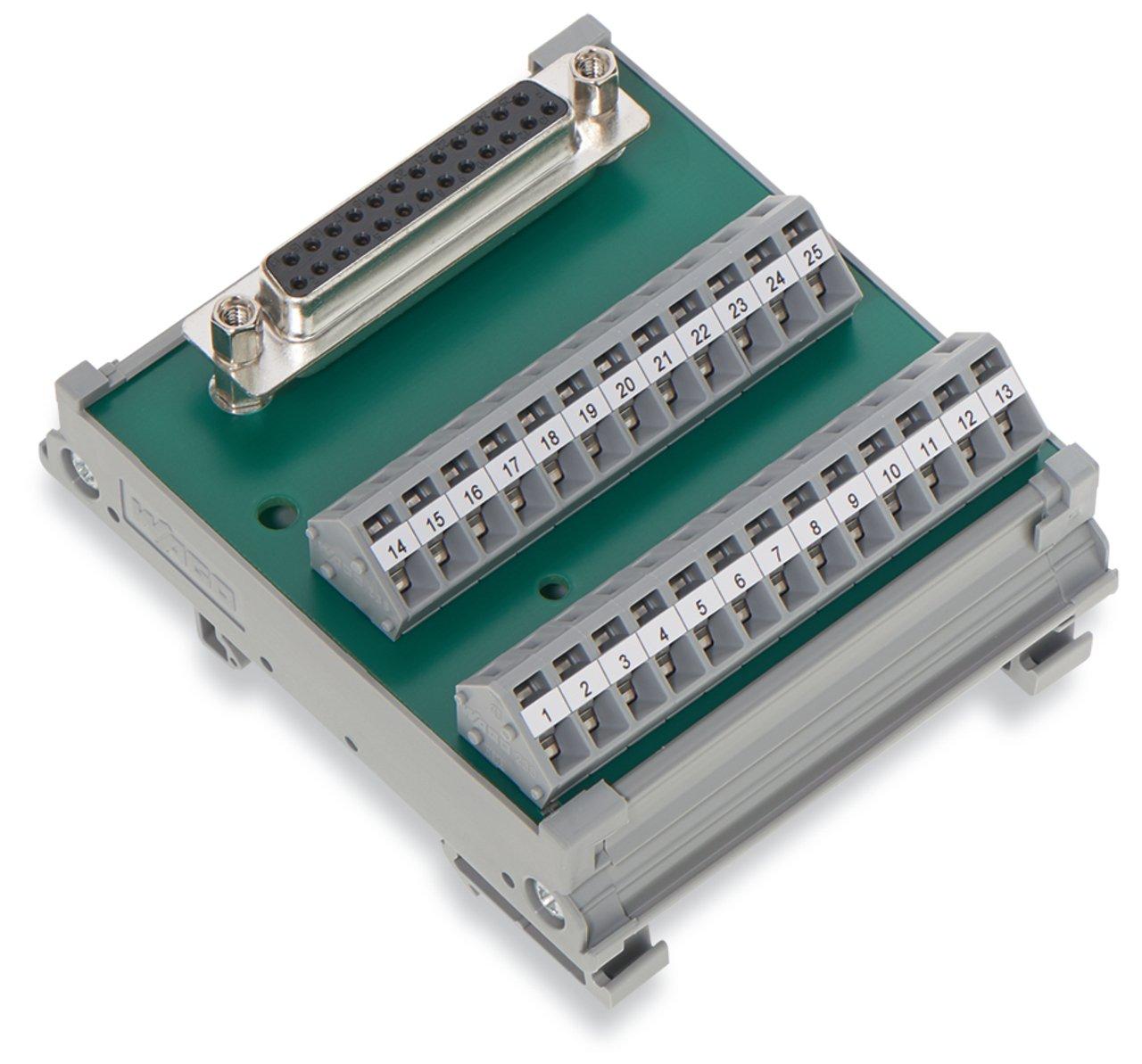

- WAGO, 289-555, Interface Module, Female Connector, Series: 289, = 125 V AC/DC, 2 A, Cage Terminal, -20 to 50 deg C, Au/Ni, 3.34 in H x 1.49 in W x 1.33 in D Dimensions
289-555 Standards
RoHS Compliant|EN 61010-2-201SKU #2244869Part Number #289-555UNSPSC32151603UPC04045454371180
