Part Number # 289-618
SKU # 2135162
Image Disclaimers Message
Brand: Wago
289-618

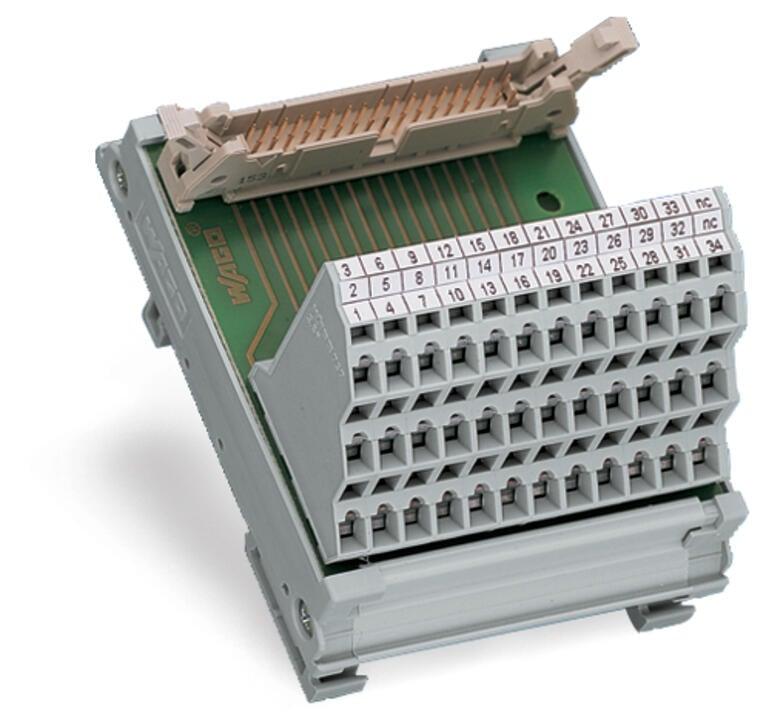

WAGO 289-618 Interface module
Part Number # 289-618
SKU # 2135162
$164.02 / Each
Wago 289-618 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-618 |
| SKU #: | 2135162 |
| Amperage Rating: | 1 A |
| Dimensions: | 3.346 in H x 3.465 in W x 2.441 in D |
| Number of Poles: | 50 |
| Temperature Rating (Degrees F): | -20 to 55 deg C |
| Type: | Triple-Deck |
| Wire Size: | 28 to 12 AWG |
| Country of origin: | DE |
| Depth: | 85 mm / 3.346 inch |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Operating voltage: | ≤ AC 100 V; ≤ DC 125 V |
| Performance level: | 3 / 50 mating cycles |
| Protection type: | IP20 |
| Rated voltage: | 100 V |
| Weight: | 141.500 g |
| Width: | 88 mm / 3.465 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04045454353629 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$164.02 / Each
Quantity:
- WAGO, 289-618, Interface Module, Triple-Deck, 125 V DC, 1 A, 50 Pole, 28 to 12 AWG Wire, 0.20 to 0.24 in Wire Strip Length, DIN Rail Mounting, -20 to 55 deg C, 3.346 in H x 3.465 in W x 2.441 in D Dimensions
289-618 Standards
EN 61010-2-201|DIN 41651|RoHS Compliant|IP00SKU #2135162Part Number #289-618UNSPSC32151603UPC04045454353629
