Part Number # 289-623
SKU # 932631
Wago 289-623 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-623 |
| SKU #: | 932631 |
| Amperage Rating: | 2 A |
| Dimensions: | 3.346 in H x 2.205 in W x 2.441 in D |
| Number of Poles: | 25 |
| Temperature Rating (Degrees F): | -20 to 50 deg C |
| Type: | Triple-Deck |
| Wire Size: | 28 to 12 AWG |
| Country of origin: | DE |
| Depth: | 85 mm / 3.346 inch |
| For mating connector: | With solder contact |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Operating voltage: | ≤ AC/DC 125 V |
| Performance level: | 2 / 200 mating cycles |
| Protection type: | IP20 |
| Rated voltage: | 125 V |
| Standards/Specifications: | EN 61010-2-201 |
| Strain relief: | UNC 4-40 stud bolt |
| Weight: | 94.531 g |
| Width: | 56 mm / 2.205 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04045454417192 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$115.77 / Each
Quantity:

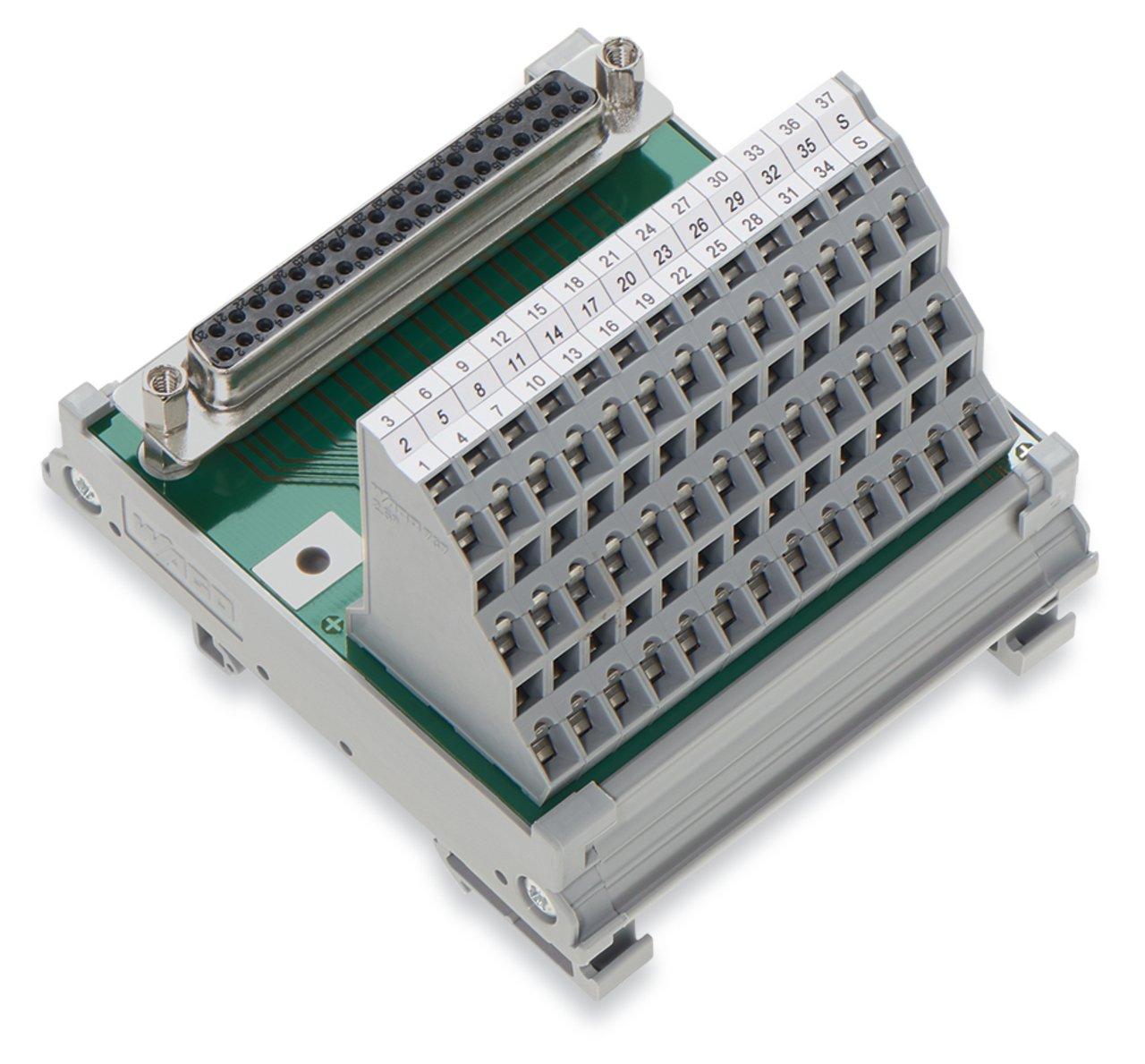

WAGO 289-623 Interface module
Brand: Wago
Part Number: 289-623
Additional Description: WAGO-289-623 IM SUB-D F 51182342
Catalog Description: Interface module; with solder pin; Female connector; 25-pole; Mating connector with solder connection; Vertical mounting; Triple-deck PCB terminal blocks; in mounting carrier; with shield connection; 2,50 mm²
289-623 Standards
EN 61010-2-201|RoHS Compliant|IP00SKU #932631Part Number #289-623UNSPSC32151603UPC04045454417192
Image provided may only be a representation of final product and may include optional equipment
