WAGO 289-652 Programmable Logic Controller Distributed On Machine I/O Subsystem
2220308
MFG #: 289-652
$83.10
/ EA
Usually Ships within 5-8 Days
- Connection technology 2: CAGE CLAMP®
- Connection type (1): System
- Connection type 2: Field
- Contact material (connector): Au over Ni
- Contact resistance (max.): 30 mΩ
- Country of origin: DE
- Customs tariff number: 85366990990
- Depth: 85 mm / 3.346 inch
- Design 2: PCB terminal blocks (double-deck)
- Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fire load: 0.000 MJ
- GTIN: 4045454725747
- Height from upper-edge of DIN-rail: 48 mm / 1.89 inch
- Housing design: Mounting carrier
- Mating direction: Vertical
- Mounting type: DIN-35 rail
- Nominal current: 0.0833333333333333
- Note (conductor cross-section): 12 AWG: THHN, THWN
- Operating altitude (max.): 2000 m
- Operating voltage: ≤ AC/DC 125 V
- Packaging type: BOX
- Performance level: 2 / 200 mating cycles

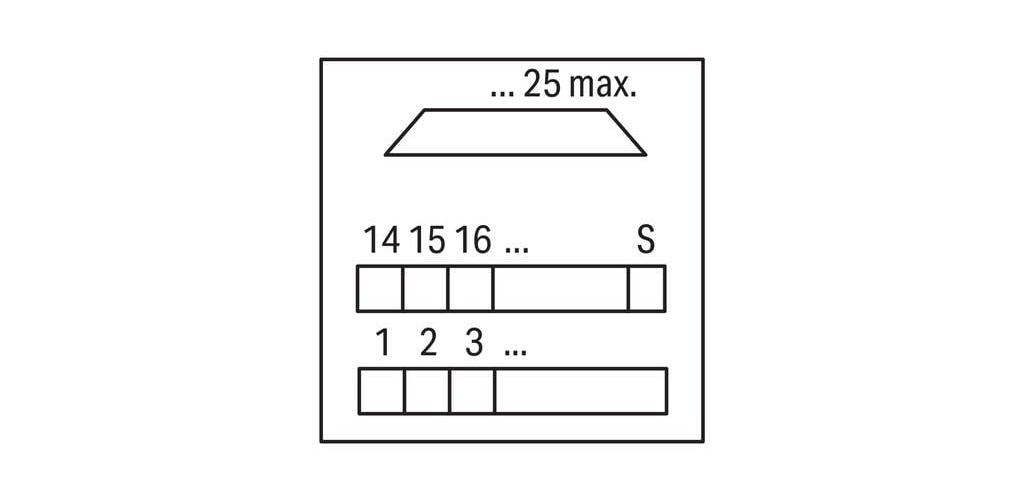

- Pluggable connectors: D-sub female connector
- Pole No.: 25
- Pole number 2: 26
- Pollution degree: 2
- Protection type: IP20
- Rated surge voltage: 0.8 kV
- Rated voltage: 125 V
- Relative humidity: ≤ 85% (non-condensing)
- Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
- Specialty functions: With shield connection
- Standards/Specifications: EN 61010-2-201
- Strain relief: UNC 4-40 stud bolt
- Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
- Surrounding air temperature (operation): -20 … 50 °C
- Surrounding air temperature (storage): -40 … 70 °C
- WAGO Connector 2: WAGO 736 Series
- Weight: 90.113 g
- Width: 68.5 mm / 2.697 inch
Interface module
