Brand: Wago
289-664

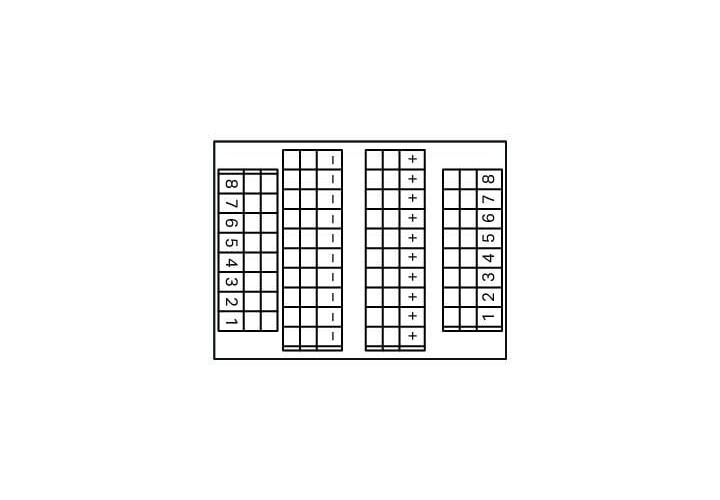

WAGO 289-664 Sensor/actuator module
Part Number # 289-664
SKU # 2234068
$64.88 / Each
Wago 289-664 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-664 |
| SKU #: | 2234068 |
| Dimensions: | 3.346 in H x 2.205 in W x 1.339 in D |
| Wire Size: | 12 AWG |
| Circuit type: | 3-wire connection |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 85 mm / 3.346 inch |
| Inputs/outputs: | 8-Channel Digital Input |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Operating voltage: | ≤ AC 100 V; ≤ DC 125 V |
| Rated voltage: | 100 V |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total current: | 0.333333333333333 |
| WAGO Connector: | WAGO 236 Series |
| Weight: | 73.013 g |
| Width: | 56 mm / 2.205 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04045454193294 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$64.88 / Each
Quantity:
- WAGO, 289-664, Sensor and Actuator Module, 35 mm DIN Rail Mounting, 12 AWG Solid Conductor Wire, 3.346 in H x 2.205 in W x 1.339 in D Dimensions
289-664 Standards
RoHS Compliant|IP20SKU #2234068Part Number #289-664UNSPSC32151603UPC04045454193294
