Part Number # 289-707
SKU # 2343434
Image provided may only be a representation of
final product and may include optional equipment
Wago 289-707 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 289-707 |
| SKU #: | 2343434 |
| Amperage Rating: | 1 A |
| Dimensions: | 3.346 in H x 3.11 in W x 2.441 in D |
| Number of Poles: | 44 |
| Temperature Rating (Degrees F): | -20 to 55 deg C |
| Type: | Triple-Deck |
| Wire Size: | 28 to 12 AWG |
| Country of origin: | DE |
| Depth: | 85 mm / 3.346 inch |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Operating voltage: | ≤ AC/DC 125 V |
| Performance level: | 3 / 50 mating cycles |
| Protection type: | IP20 |
| Rated voltage: | 125 V |
| Standards/Specifications: | EN 61010-2-201 |
| Strain relief: | UNC 4-40 stud bolt |
| Weight: | 130.200 g |
| Width: | 79 mm / 3.11 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04050821328308 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$208.71 / Each
Quantity:
WAGO 289-707 Interface module
Brand: Wago
Part Number: 289-707
Additional Description: WAGO-289-707 IM SUB-D F 51248181

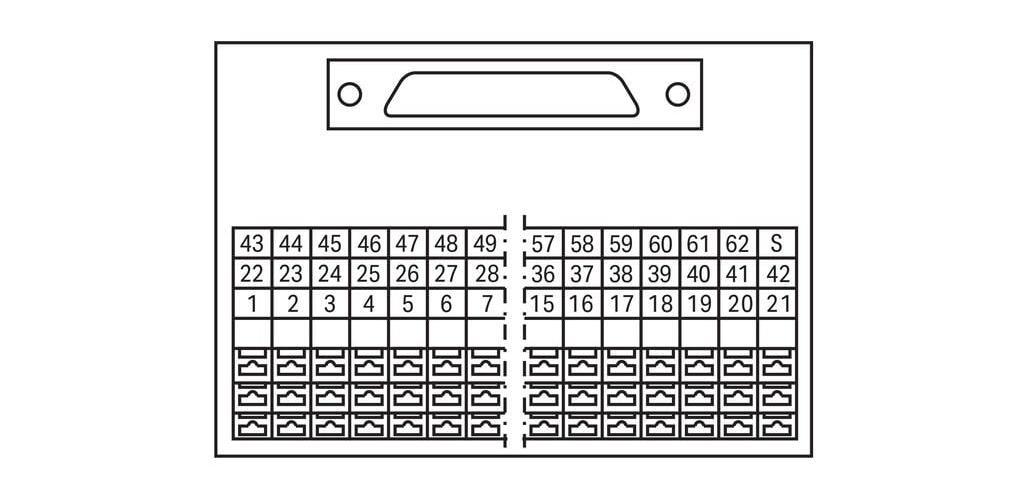

Catalog Description: Interface module; HD-Sub-D; Female connector; 44-pole; Triple-deck PCB terminal blocks; in mounting carrier; with shield connection; 2,50 mm²
289-707 Standards
EN 61010-2-201|RoHS Compliant|IP20SKU #2343434Part Number #289-707UNSPSC32151603UPC04050821328308
