Part Number # 294-5315
SKU # 2258875
294-5315
WAGO 294-5315 Lighting connector
Part Number # 294-5315
SKU # 2258875
Wago 294-5315 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 294-5315 |
| SKU #: | 2258875 |
| Amperage Rating: | 24 A |

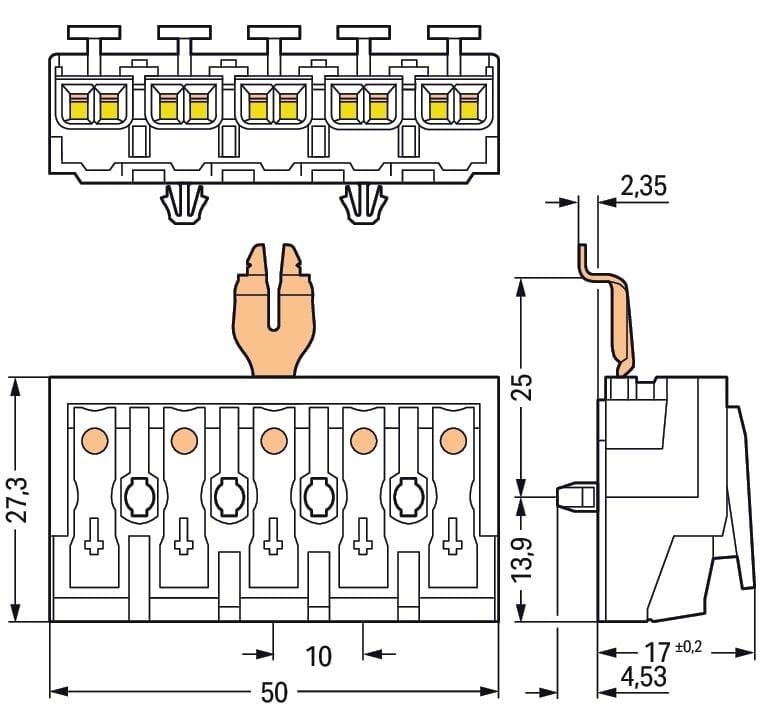

| Dimensions: | 0.848 in H x 1.969 in W x 1.075 in D |
| Number of Poles: | 5 |
| Spacing: | 0.394 in |
| Type: | Operating Tool |
| Wire Size: | 18 AWG |
| Actuation type: | Operating tool || Push-button |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 27.3 mm / 1.075 inch |
| Insulation material: | Polycarbonate (PC) |
| Marking: | L3-L2-L1-⏚-N |
| Material: | Polycarbonate |
| Mounting type: | Snap-Fit, Snap-in, Snap-in mounting foot |
| Number of connection points: | 1 || 1 || 1 |
| Number of connection points (connection type): | 2 |
| Number of connection types: | 4 |
| Rated current: | 24 A |
| Solid conductor: | 0.5 … 2.5 mm² / 18 … 12 AWG |
| Stranded conductor: | 0.5 … 2.5 mm² / 18 … 14 AWG |
| Total number of connection points: | 25 |
| Weight: | 16.206 g |
| Width: | 50 mm / 1.969 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04050821098492 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 294-5315 Lighting connector
Brand: Wago
Part Number: 294-5315
Additional Description: WAGO-294-5315 LIGHTING CONNECTOR; PUSH-BUTTON, EXTERNAL; WITH ANGLED SNAP-IN GROUND CONTACT; L3-L2-L1-PE-N; 5-POLE; LIGHTING SIDE: FOR SOLID CONDUCTORS; INST. SIDE: FOR ALL CONDUCTOR TYPES; MAX. 2.5 MM; SURROUNDING AIR TEMPERATURE: MAX 85 C (T85); 2,50 MM; WHITE 2945315
Catalog Description: Lighting connector; push-button, external; with angled snap-in ground contact; L3-L2-L1-PE-N; 5-pole; Lighting side: for solid conductors; Inst. side: for all conductor types; max. 2.5 mm²; Surrounding air temperature: max 85°C (T85); 2,50 mm²; white
294-5315 Item Features
- External connection of solid, stranded and fine-stranded conductors
- Universal conductor termination (AWG, metric)
- Third contact located at the bottom of internal connection end
- Strain relief plate can be retrofitted
294-5315 Standards
IEC/EN 60998-2-2|RoHS CompliantSKU #2258875Part Number #294-5315UNSPSC39121410UPC04050821098492
Image provided may only be a representation of final product and may include optional equipment
