Part Number # 294-5413
SKU # 2258870
294-5413
WAGO 294-5413 Lighting connector
Part Number # 294-5413
SKU # 2258870
Wago 294-5413 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 294-5413 |
| SKU #: | 2258870 |

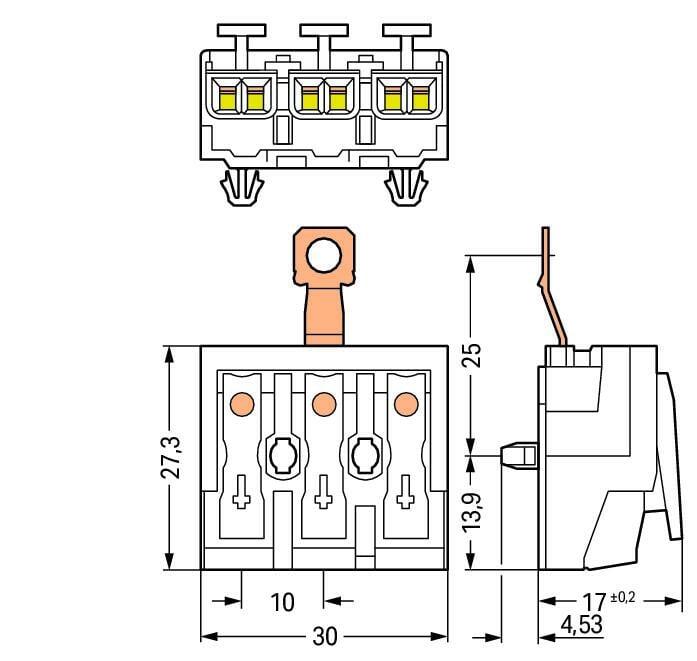

| Dimensions: | 0.848 in H x 1.181 in W x 1.075 in D |
| Spacing: | 0.394 in |
| Type: | Operating Tool |
| Wire Size: | 18 AWG |
| Actuation type: | Operating tool || Push-button |
| Connection technology: | Push-in CAGE CLAMP® |
| Depth: | 27.3 mm / 1.075 inch |
| Insulation material: | Polycarbonate (PC) |
| Marking: | N-⏚-L |
| Mounting type: | Snap-in mounting foot |
| Number of connection points: | 1 || 1 || 1 |
| Number of connection points (connection type): | 2 |
| Number of connection types: | 4 |
| Rated current: | 24 A |
| Solid conductor: | 0.5 … 2.5 mm² / 18 … 12 AWG |
| Stranded conductor: | 0.5 … 2.5 mm² / 18 … 14 AWG |
| Total number of connection points: | 15 |
| Weight: | 9.700 g |
| Width: | 30 mm / 1.181 inch |
| UNSPSC: | 39121410 |
| UPC: | 04050821020806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 294-5413 Lighting connector
Brand: Wago
Part Number: 294-5413
Additional Description: WAGO-294-5413 LIGHTING CONNECTOR; PUSH-BUTTON, EXTERNAL; WITH SCREW-TYPE GROUND CONTACT; N-PE-L; 3-POLE; LIGHTING SIDE: FOR SOLID CONDUCTORS; INST. SIDE: FOR ALL CONDUCTOR TYPES; MAX. 2.5 MM; SURROUNDING AIR TEMPERATURE: MAX 85 C (T85); 2,50 MM; WHITE 2945413
Catalog Description: Lighting connector; push-button, external; with screw-type ground contact; N-PE-L; 3-pole; Lighting side: for solid conductors; Inst. side: for all conductor types; max. 2.5 mm²; Surrounding air temperature: max 85°C (T85); 2,50 mm²; white
294-5413 Item Features
- External connection of solid, stranded and fine-stranded conductors
- Universal conductor termination (AWG, metric)
- Third contact located at the bottom of internal connection end
- Strain relief plate can be retrofitted
294-5413 Standards
IEC/EN 60998-2-2|RoHS CompliantSKU #2258870Part Number #294-5413UNSPSC39121410UPC04050821020806
Image provided may only be a representation of final product and may include optional equipment
