704-2004

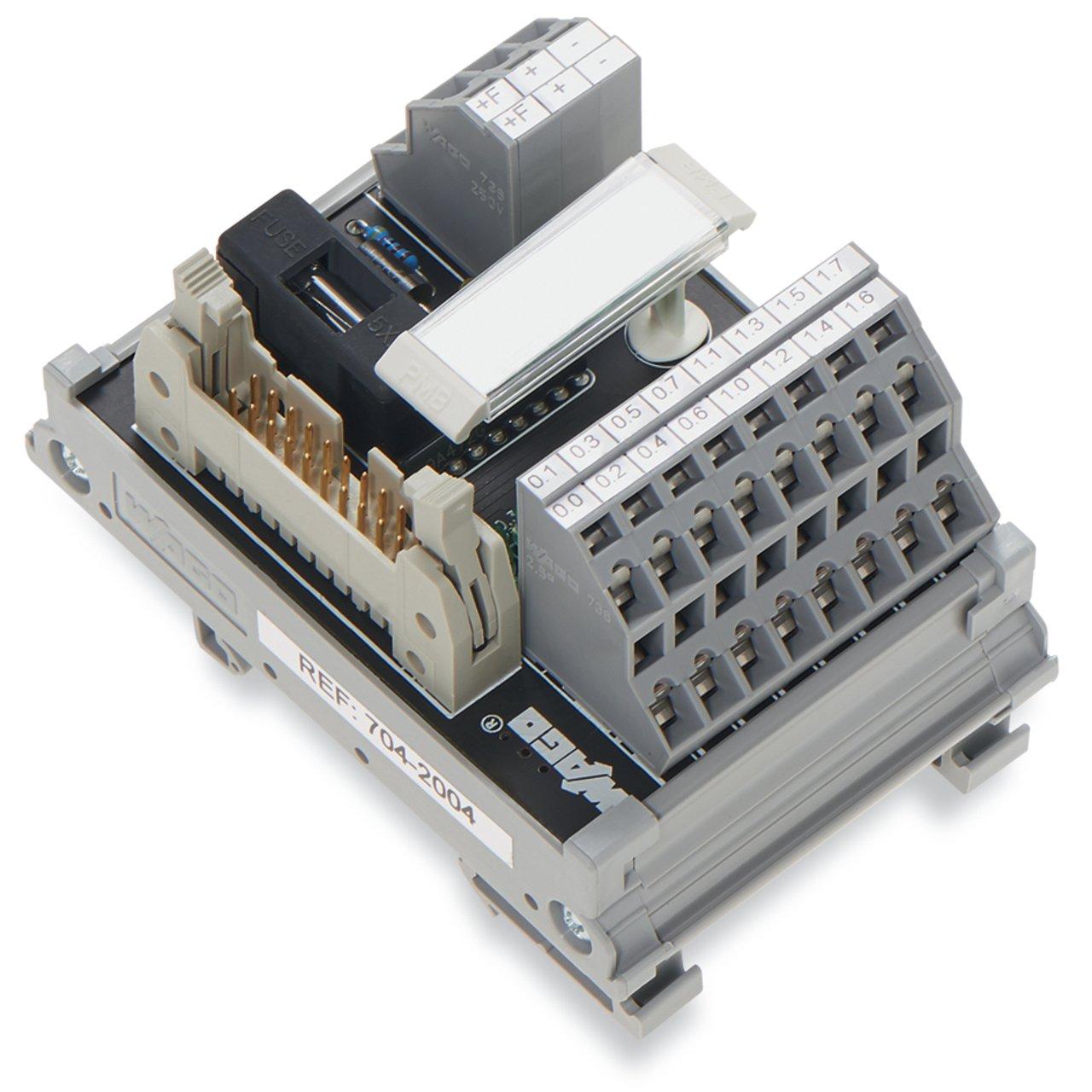

WAGO 704-2004 Interface module for system wiring
Part Number # 704-2004
SKU # 2352307
Wago 704-2004 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 704-2004 |
| SKU #: | 2352307 |
| Amperage Rating: | 2 A |
| Dimensions: | 3.34 in H x 2.16 in W x 1.96 in D |
| Series: | 704 |
| Temperature Rating (Degrees F): | -20 to 50 deg C |
| Terminal Type: | Cage |
| Type: | Pluggable Connector |
| Circuit type: | 1-cond. connection |
| Country of origin: | FR |
| Depth: | 85 mm / 3.346 inch |
| Inputs/outputs: | 16-channel digital input or output |
| Mounting type: | DIN-35 rail |
| Operating voltage range: | ±10 % |
| Rated voltage: | 50 V |
| Status indicator: | Green LED (channel) || Yellow LED (power supply) |
| Total current: | 0.0833333333333333 |
| Weight: | 80.000 g |
| Width: | 55 mm / 2.165 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821161998 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 704-2004 Interface module for system wiring
Brand: Wago
Part Number: 704-2004
WAGO, 704-2004, Interface Module, Pluggable Connector, Series: 704, 24 VDC, 2 A, Cage Terminal, -20 to 50 deg C, 3.34 in H x 2.16 in W x 1.96 in D Dimensions
Additional Description: WAGO-704-2004 INTERFACE MODULE FOR SYSTEM WIRING; PLUGGABLE CONNECTOR PER DIN 41651; MALE CONNECTOR; 20-POLE; 16-CHANNEL DIGITAL INPUT OR OUTPUT; 1-WIRE CONNECTION; IN MOUNTING CARRIER 7042004
Catalog Description: Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel digital input or output; 1-wire connection; in mounting carrier
