Part Number # 704-2024
SKU # 2299356
704-2024
WAGO 704-2024 Interface module for system wiring
Part Number # 704-2024
SKU # 2299356
Wago 704-2024 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 704-2024 |
| SKU #: | 2299356 |
| Dimensions: | 3.346 in H x 3.346 in W x 1.969 in D |
| Number of Poles: | 20 |
| Temperature Rating (Degrees F): | -20 to 50 deg C |
| Type: | Male |
| Wire Size: | 28 to 12 AWG |
| Circuit type: | 2-wire connection |
| Country of origin: | FR |
| Depth: | 85 mm / 3.346 inch |
| Inputs/outputs: | 16-channel digital input or output |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Operating voltage range: | ±10 % |
| Rated voltage: | 50 V |
| Status indicator: | Green LED (channel) || Yellow LED (power supply) |
| Total current: | 0.0833333333333333 |
| Weight: | 112.260 g |
| Width: | 85 mm / 3.346 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821220657 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 704-2024 Interface module for system wiring
Brand: Wago
Part Number: 704-2024
Additional Description: WAGO-704-2024 INTERFACE MODULE FOR SYSTEM WIRING; PLUGGABLE CONNECTOR PER DIN 41651; MALE CONNECTOR; 20-POLE; 16-CHANNEL DIGITAL INPUT OR OUTPUT; 2-WIRE CONNECTION; IN MOUNTING CARRIER 7042024 carrier PLUGGABLE CONNECTOR PER DIN 41651; MALE CONNECTOR; 20-POLE; 16-CHANNEL DIGITAL INPUT OR OUTPUT; 2-WIRE CONNECTION; IN MOUNTING CARRIER 07042024
Catalog Description: Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel digital input or output; 2-wire connection; in mounting carrier
704-2024 Standards
DIN 41651|RoHS CompliantSKU #2299356Part Number #704-2024UNSPSC43232306UPC04050821220657

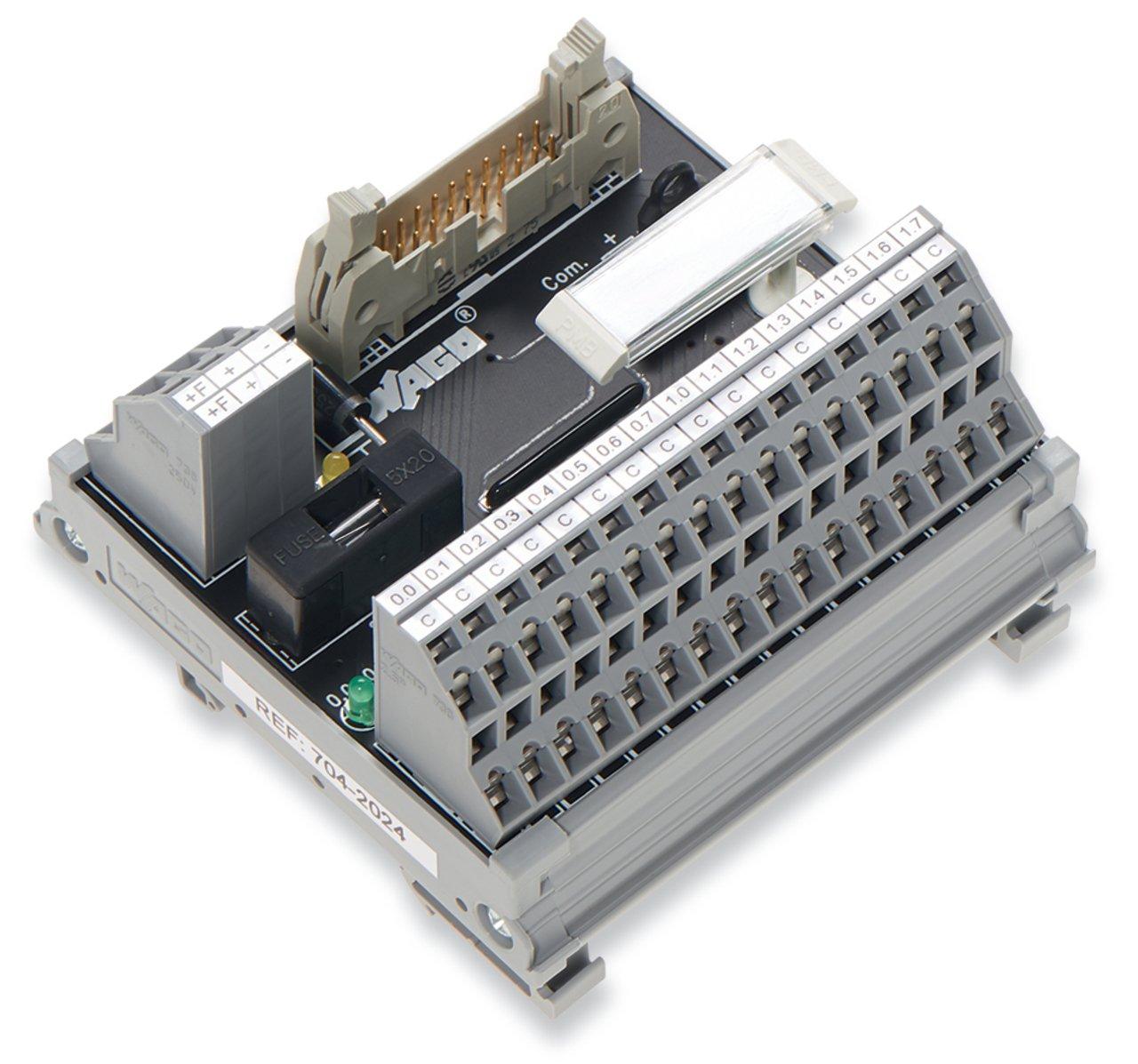

Image provided may only be a representation of final product and may include optional equipment
