Part Number # 704-5024
SKU # 2237969
Image provided may only be a representation of
final product and may include optional equipment
704-5024

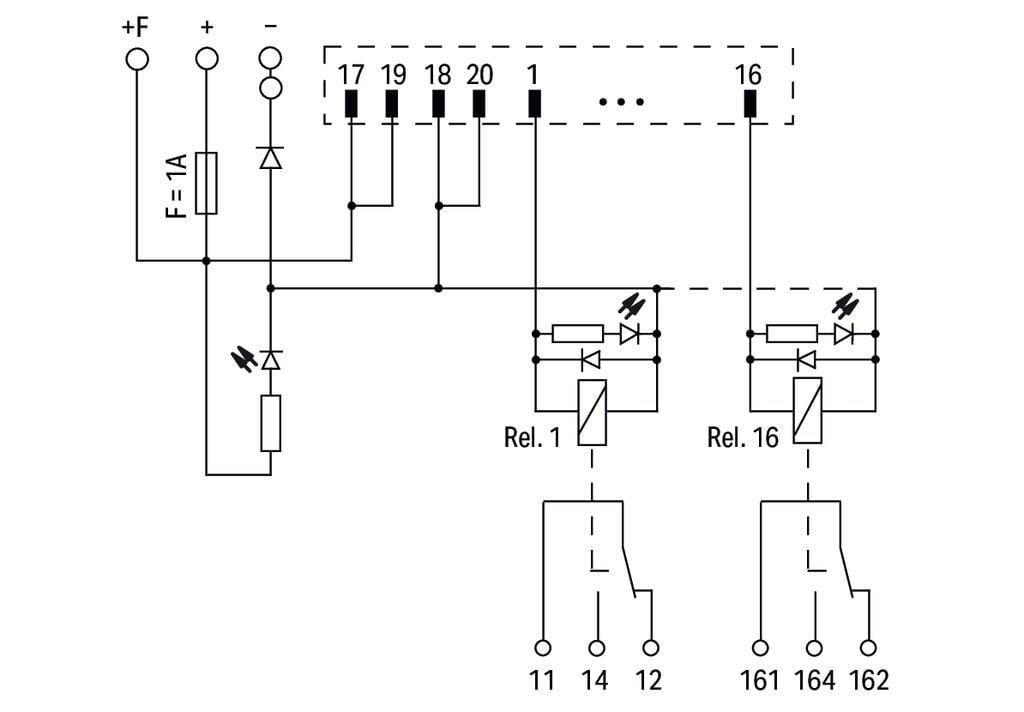

WAGO 704-5024 Interface module for system wiring
Part Number # 704-5024
SKU # 2237969
Wago 704-5024 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 704-5024 |
| SKU #: | 2237969 |
| Dimensions: | 4.134 in H x 4.37 in W x 2.559 in D |
| Number of Poles: | 20 |
| Temperature Rating (Degrees F): | -25 to 40 deg C |
| Type: | Triple-Deck |
| Wire Size: | 28 to 12 AWG |
| Country of origin: | FR |
| Depth: | 105 mm / 4.134 inch |
| Inputs/outputs: | 16-channel relay output |
| Mechanical life: | 10 x 106 switching operations |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Number of changeover/switchover contacts: | 1 |
| Operating voltage range: | ±10 % |
| Rated voltage: | 50 V |
| Status indicator: | Green LED (channel) || Yellow LED (power supply) |
| Weight: | 300.000 g |
| Width: | 111 mm / 4.37 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04045454980139 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 704-5024 Interface module for system wiring
Brand: Wago
Part Number: 704-5024
Additional Description: WAGO-704-5024 INTERFACE MODULE FOR SYSTEM WIRING; PLUGGABLE CONNECTOR PER DIN 41651; MALE CONNECTOR; 20-POLE; 16-CHANNEL RELAY OUTPUT; 1 CHANGEOVER CONTACT; DOUBLE-DECK PCB TERMINAL BLOCKS; IN MOUNTING CARRIER; 2,50 MM 07045024
Catalog Description: Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel relay output; 1 changeover contact; Triple-deck PCB terminal blocks; in mounting carrier; 2,50 mm²
704-5024 Standards
DIN 41651|RoHS CompliantSKU #2237969Part Number #704-5024UNSPSC43232306UPC04045454980139
