Part Number # 706-7753/304-200
SKU # 2357041
Image provided may only be a representation of
final product and may include optional equipment
706-7753/304-200

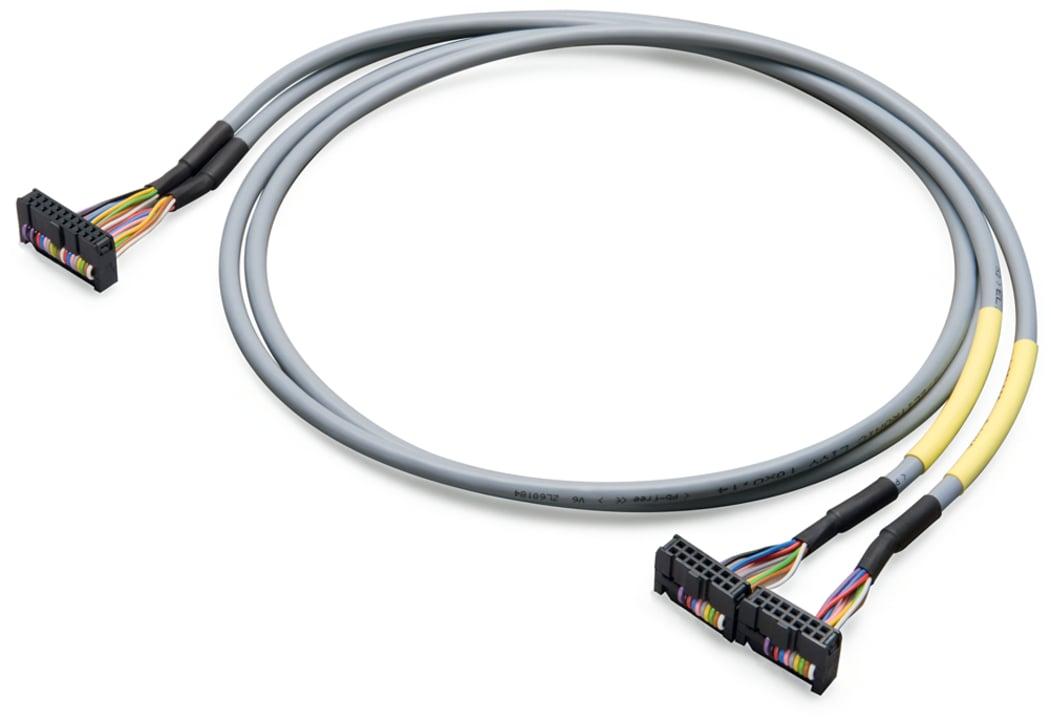

WAGO 706-7753/304-200 System cable
Part Number # 706-7753/304-200
SKU # 2357041
Wago 706-7753/304-200 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 706-7753/304-200 |
| SKU #: | 2357041 |
| Amperage Rating: | 1 A |
| Connector Type: | Pluggable |
| Number of Poles: | 8 |
| Series: | 706 |
| Cable length: | 2 m |
| Cable type: | LiYY |
| Color code: | Per DIN VDE 47100 |
| Country of origin: | FR |
| Inputs/outputs: | 2 x 8 analog inputs or outputs |
| Operating voltage: | ≤ DC 35 V |
| Protection type: | IP20 |
| Weight: | 181.000 g |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43232306 |
| UPC: | 04050821034186 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 706-7753/304-200 System cable
Brand: Wago
Part Number: 706-7753/304-200
WAGO, 706-7753/304-200, System Cable, Series: 706, Pluggable Connector, 2 m Cable Length, 8 Pole, ? 35 VAC/VDC, 1 A
Additional Description: WAGO-706-7753/304-200 SYSTEM CABLE; FOR WAGO-I/O-SYSTEM, 750 SERIES; 2 X 8 ANALOG INPUTS OR OUTPUTS; LENGTH: 2 M; CONDUCTOR CROSS-SECTION: 0.14 MM 51226769
Catalog Description: System cable; for WAGO-I/O-SYSTEM, 750 Series; 2 x 8 analog inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm²
706-7753/304-200 Application
Suitable for system wiring when paired with 857-981 and 857-982 Interface Adapters706-7753/304-200 Standards
RoHS CompliantSKU #2357041Part Number #706-7753/304-200UNSPSC43232306UPC04050821034186
