713-1103/037-9037

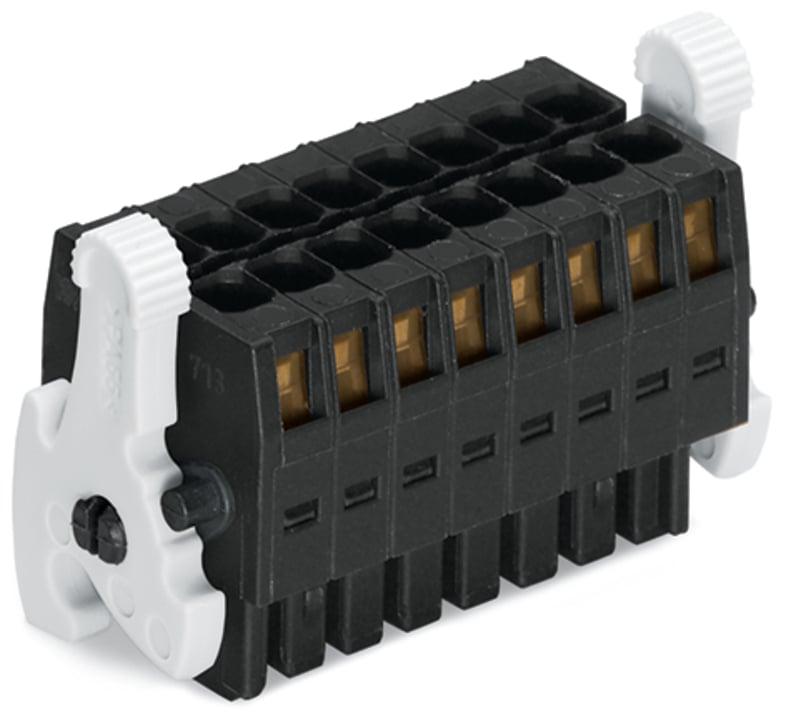

WAGO 713-1103/037-9037 1-conductor female connector, 2-row
Part Number # 713-1103/037-9037
SKU # 2313693
Wago 713-1103/037-9037 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 713-1103/037-9037 |
| SKU #: | 2313693 |
| Amperage Rating: | 10 A |
| Dimensions: | 0.74 in H x 0.748 in W x 0.63 in D |
| Number of Poles: | 6 |
| Spacing: | 0.138 in |
| Temperature Rating (Degrees F): | -60 to 100 deg C |
| Type: | 1 Conductor |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Black |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | PL |
| Depth: | 16 mm / 0.63 inch |
| Height: | 18.8 mm / 0.74 inch |
| Insulation material: | Glass fiber-reinforced polyamide (PA66 GF) |
| Material: | Polyamide 6.6 |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 6 |
| Weight: | 4.310 g |
| Width: | 19 mm / 0.748 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04050821177197 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 713-1103/037-9037 1-conductor female connector, 2-row
Brand: Wago
Part Number: 713-1103/037-9037
Additional Description: WAGO-713-1103/037-9037 1-CONDUCTOR FEMALE CONNECTOR, 2-ROW; CAGE CLAMP; 1.5 MM; PIN SPACING 3.5 MM; 6-POLE; 100% PROTECTED AGAINST MISMATING; LEVERS; DIRECT MARKING; 1,50 MM; BLACK 51236294 PROTECTED AGAINST MISMATING; LEVERS; DIRECT MARKING; 1.5 MM ; PIN SPACING 3.5 MM; 6-POLE; 1,50 MM ; BLACK 51236294
Catalog Description: 1-conductor female connector, 2-row; CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 6-pole; 100% protected against mismating; Levers; direct marking; 1,50 mm²; black
713-1103/037-9037 Standards
RoHS CompliantSKU #2313693Part Number #713-1103/037-9037UNSPSC39121421UPC04050821177197
