714-106

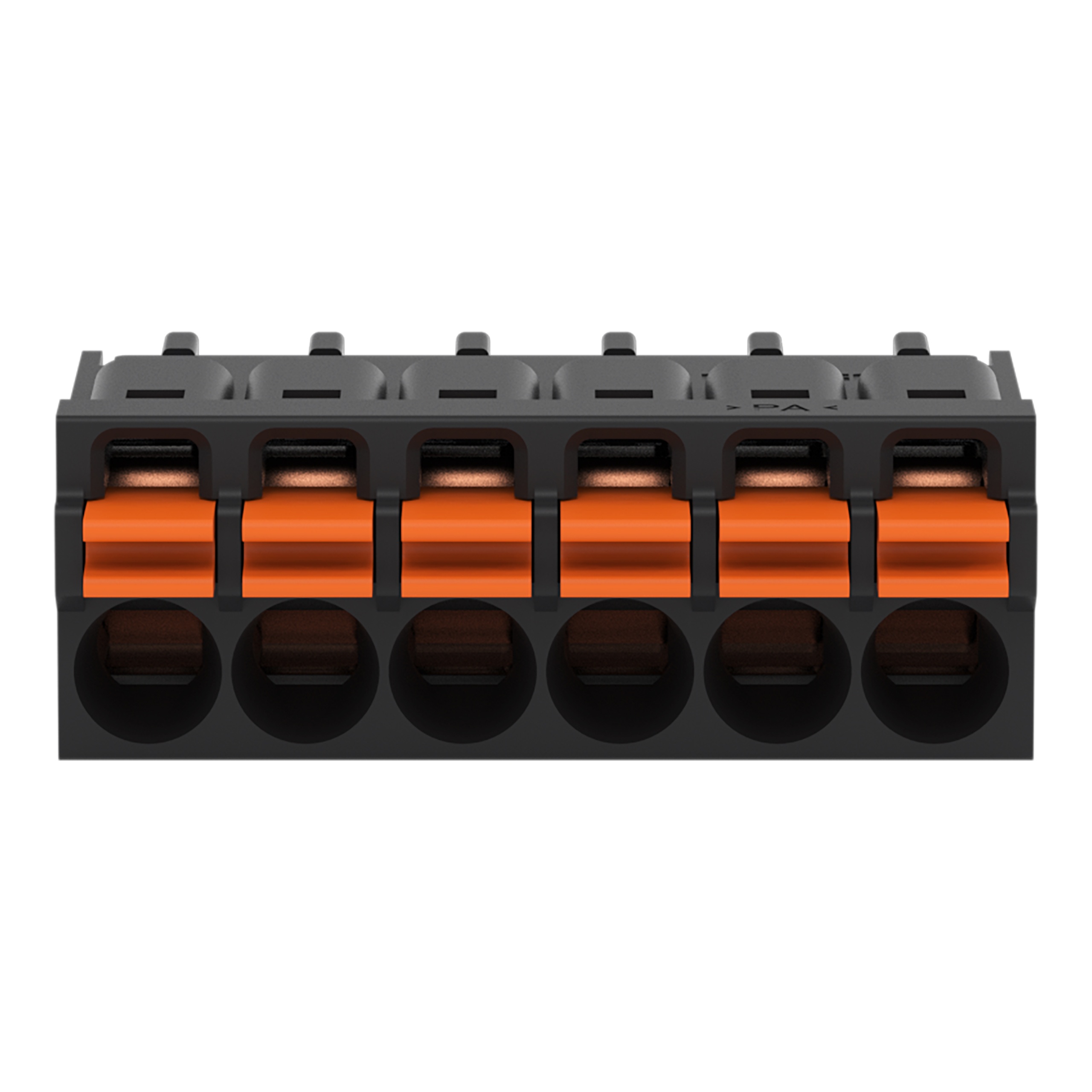

WAGO 714-106 1-conductor female plug
Part Number # 714-106
SKU # 2377893
$636.92 / 100Each
Typical price:$690.00 / Each
Wago 714-106 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 714-106 |
| SKU #: | 2377893 |
| Dimensions: | 0.307 in H x 0.854 in W x 0.906 in D |
| Wire Size: | 24 to 16 AWG |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454858742 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$636.92 / 100Each
Typical price:$690.00 / Each
Quantity:
WAGO 714-106 1-conductor female plug
Brand: Wago
Part Number: 714-106
WAGO, 714-106, 1-Conductor Female Connector, Push Button, 320 V, 8 A, 6 Pole, 24 to 16 AWG Wire, 0.35 to 0.39 in Wire Strip Length, Push-In Connection, -35 to 60 deg C, Polyamide, Black, 0.307 in H x 0.854 in W x 0.906 in D Dimensions
Additional Description: WAGO-714-106 1-CONDUCTOR FEMALE PLUG; PUSH-BUTTON; 1.5 MM ; PIN SPACING 3.5 MM; 6-POLE; 1,50 MM ; BLACK 7140106
Catalog Description: 1-conductor female connector; push-button; 1.5 mm²; Pin spacing 3.5 mm; 6-pole; 1,50 mm²; black
714-106 Item Features
- Female connectors terminate both solid and ferruled conductors via push-in termination
- Integrated push-buttons provide convenient, tool-free operation
- Ultra-low profile of just 7.8 mm for conductor cross-section up to 1.5 mm^2
- With coding fingers and test points
714-106 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2377893Part Number #714-106UNSPSC39121421UPC04045454858742
Image provided may only be a representation of final product and may include optional equipment
