Part Number # 721-105/008-000
SKU # 2431481
Image Disclaimers Message
Brand: Wago
721-105/008-000

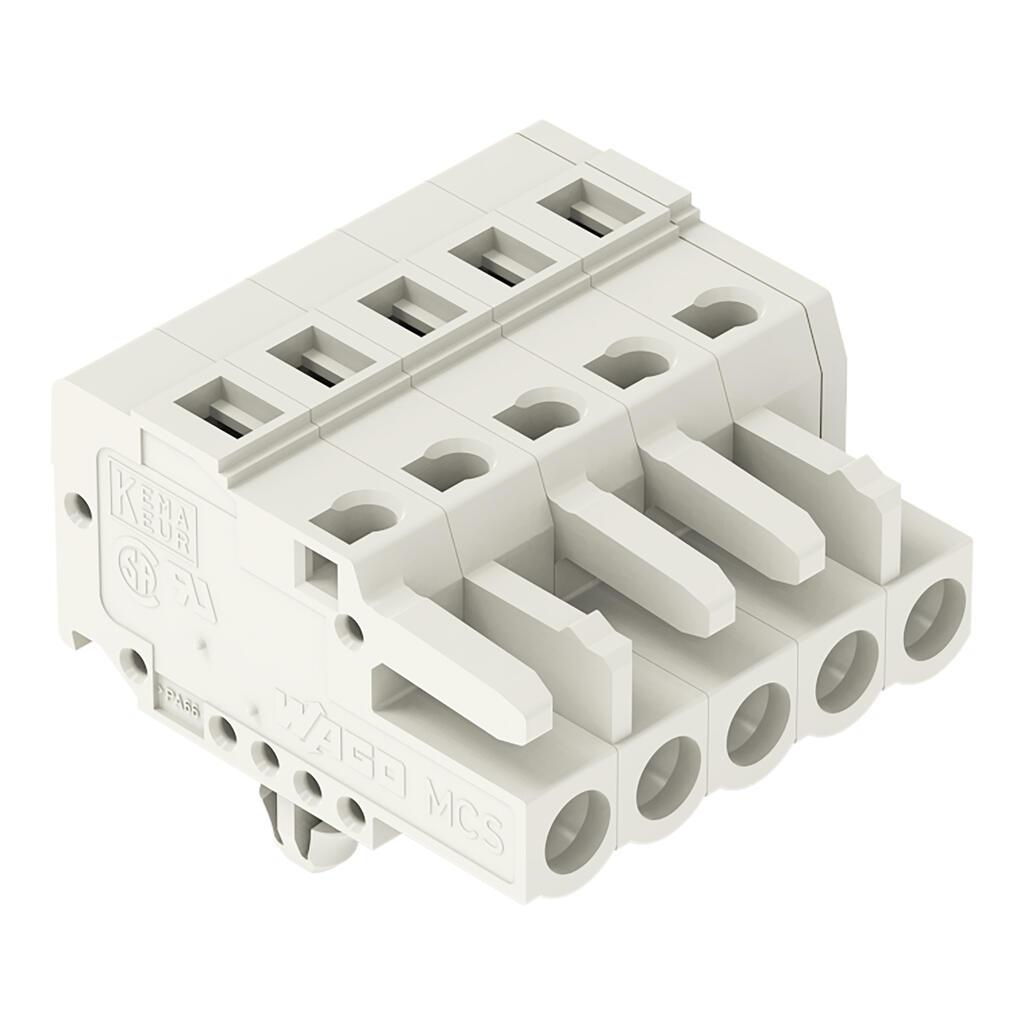

WAGO 721-105/008-000 Electrical Connector Assembly
Part Number # 721-105/008-000
SKU # 2431481
$5.62 / Each
Typical price:$6.09 / Each
Wago 721-105/008-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-105/008-000 |
| SKU #: | 2431481 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.74 in H x 1.043 in W x 1.041 in D |
| Number of Poles: | 5 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Color: | Light gray |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | Panel |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918353816 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.62 / Each
Typical price:$6.09 / Each
Quantity:
- WAGO, 721-105/008-000, 1-Conductor Female Connector, Operating Tool, 630 V, 16 A, 5 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Panel Mounting, Clamp Connection, -35 to 60 deg C, Polyamide, Light Gray, 0.74 in H x 1.043 in W x 1.041 in D Dimensions
721-105/008-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- 100 Percent protected against mismating
- Coding option available
721-105/008-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2431481Part Number #721-105/008-000UNSPSC39121421UPC04044918353816
