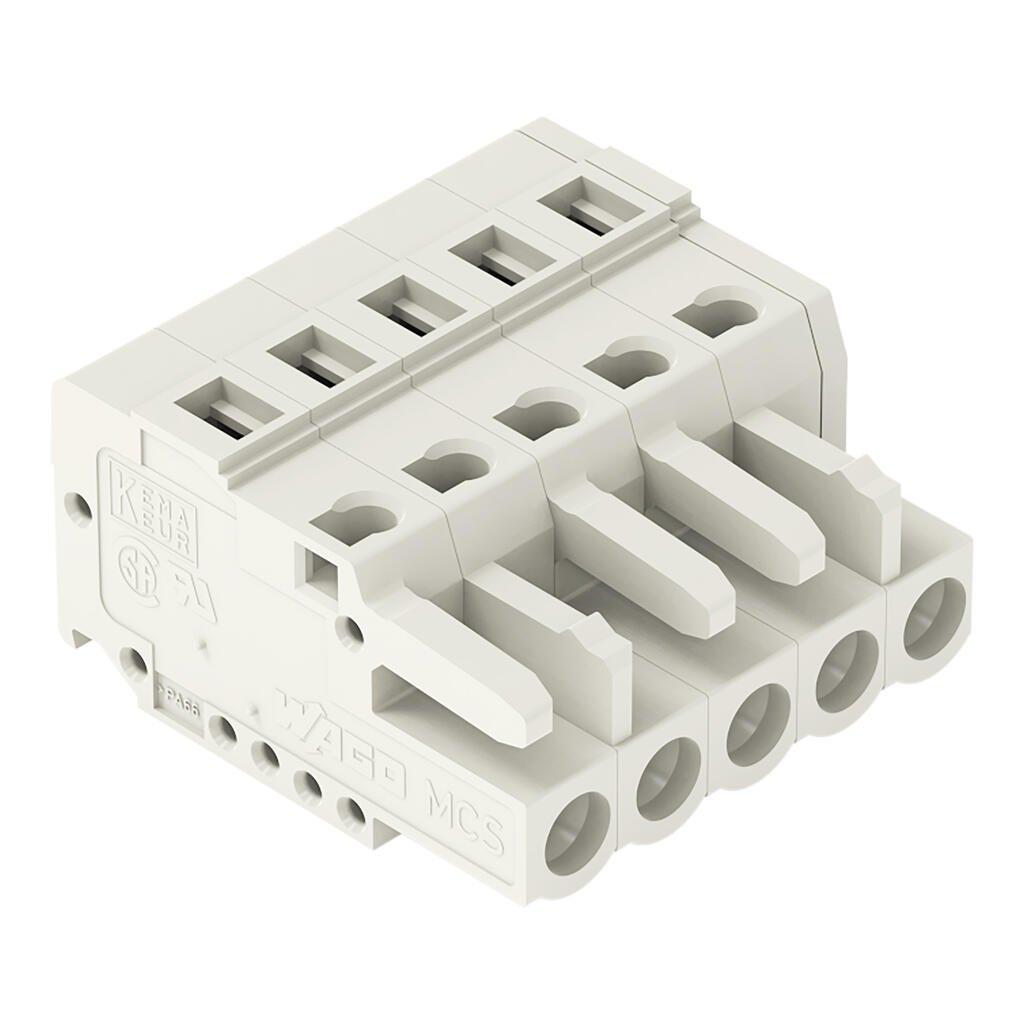

WAGO 721-105/026-000 1-conductor female plug
Image Disclaimers Message
WAGO 721-105/026-000 1-conductor female plug
WAGO 721-105/026-000 1-conductor female plug
Part #:721-105/026-000
SKU #: 2293679
Key Features
Part #:721-105/026-000
SKU #: 2293679
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
WAGO 721-105/026-000 1-conductor female plug
Wago 721-105/026-000 Female Connector, 721 Series, 1.043 IN Width X 1.041 IN Depth X 0.563 IN Height, Cage Clamp Connection, Wire Size: 28 - 12 AWG, 5 Conductor, 5 Pole, Light Gray, 630 V, 16 AMP, Pollution degree: 2, Solid Wire, Strip Length: 8 - 9 MM, 0.197 IN Pin Spacing, RoHS Compliant, ABS 04-HG469925/1-PDA, BV 11915/A0, CCA 5764, CSA 154112-1466354, GL 17296-00HH, KEMA 2083746.02, KR HMB05880-EL003, LR 96/20035, RMR 11130002, UL E45171 And E45172 Listed
Additional Description: WAGO-721-105/026-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 5 MM; 5-POLE; 2,50 MM ; LIGHT GRAY 51118027
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 5-pole; 100% protected against mismating; 2,50 mm²; light gray
