Part #:721-107/026-000
SKU #: 2377912
$6.65/EA
Key Features
Part #:721-107/026-000
SKU #: 2377912
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$6.65/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 26.45 mm / 1.041 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 16 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 7
Weight: 12.900 g
Width: 36.5 mm / 1.437 inch
UNSPSC: 39121421
UPC: 04044918354578

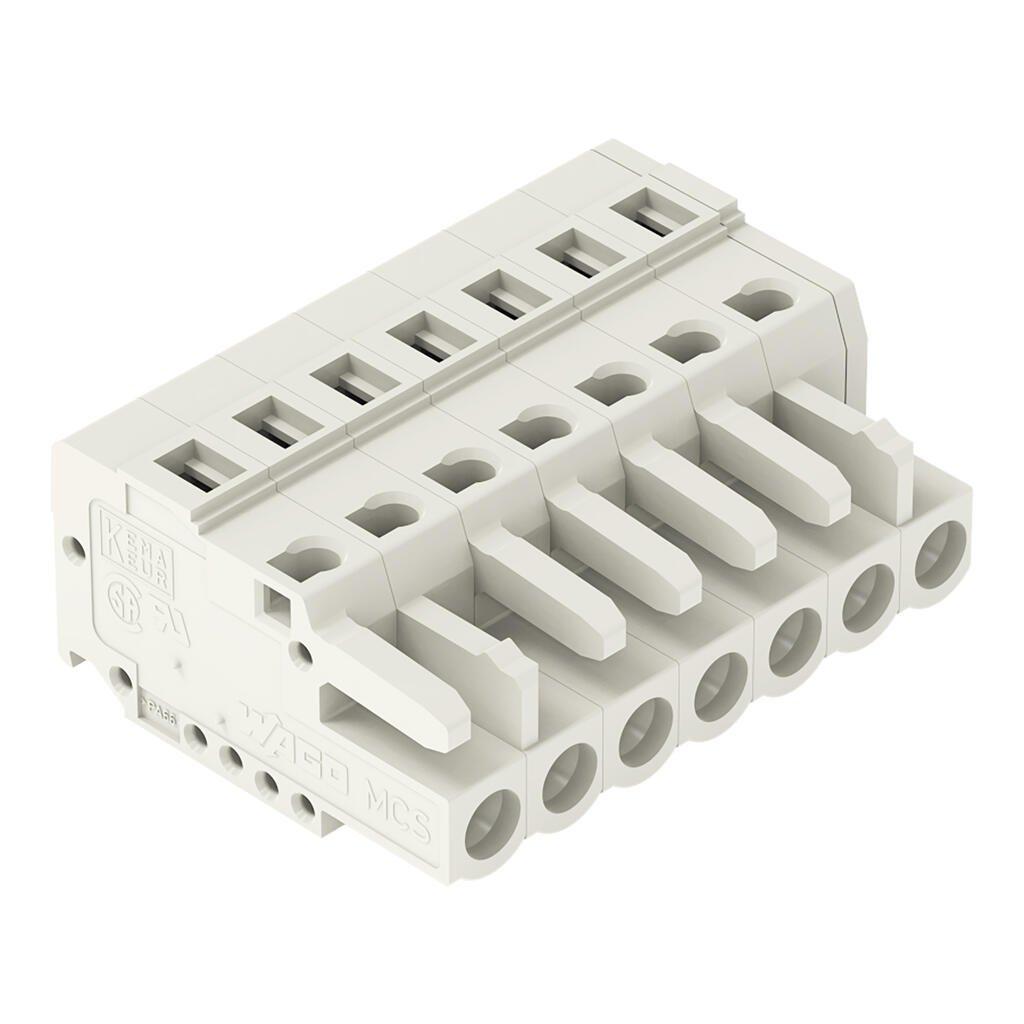

WAGO 721-107/026-000 1-conductor female plug
Additional Description: WAGO-721-107/026-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; 2.5 MM; PIN SPACING 5 MM; 7-POLE; 2,50 MM; LIGHT GRAY 51118092 PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 5 MM; 7-POLE; 2,50 MM ; LIGHT GRAY 51118092 GRAY
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 7-pole; 100% protected against mismating; 2,50 mm²; light gray
