Part Number # 721-110/026-000
SKU # 2377914
Image Disclaimers Message
721-110/026-000

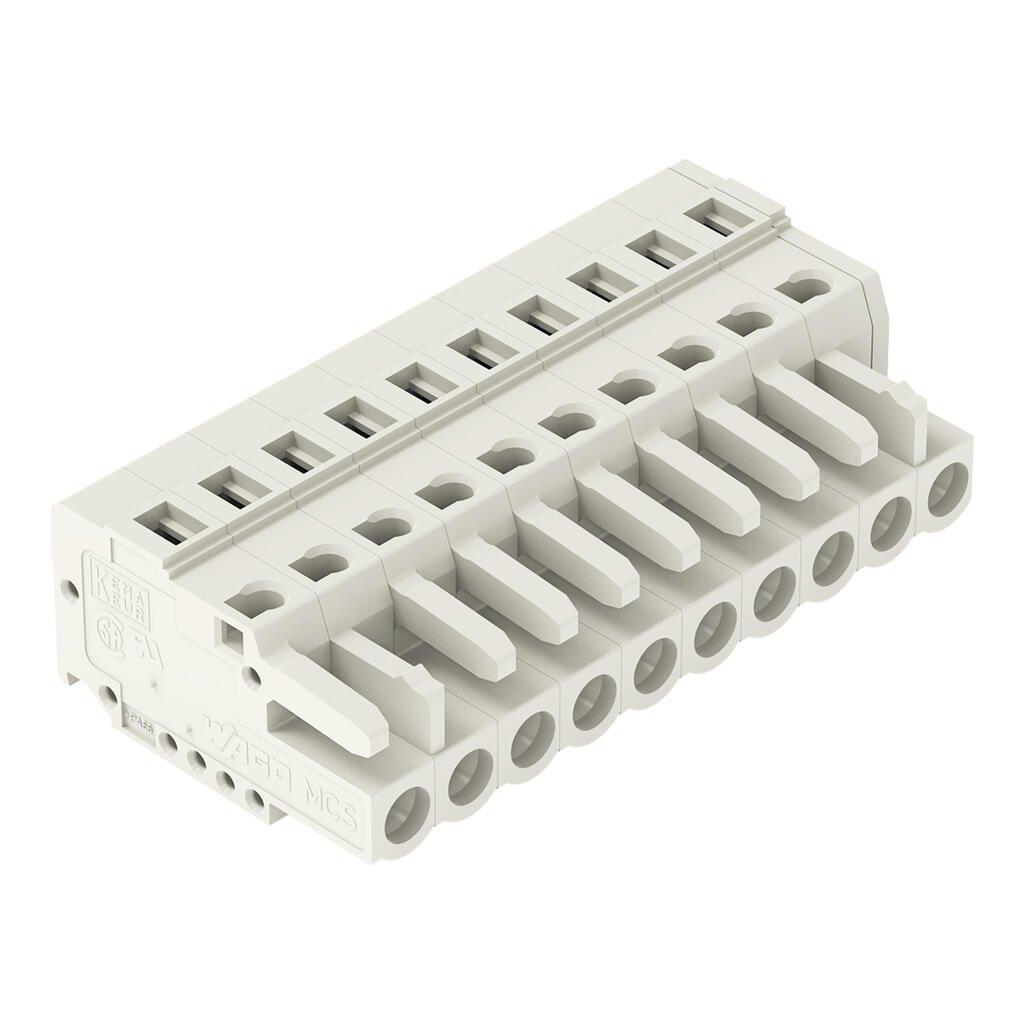

WAGO 721-110/026-000 1-conductor female plug
Part Number # 721-110/026-000
SKU # 2377914
$10.86 / Each
Typical price:$11.76 / Each
Wago 721-110/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-110/026-000 |
| SKU #: | 2377914 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 2.028 in W x 1.041 in D |
| Number of Poles: | 10 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 26.45 mm / 1.041 inch |
| Height: | 14.3 mm / 0.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 10 |
| Weight: | 18.170 g |
| Width: | 51.5 mm / 2.028 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918355193 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.86 / Each
Typical price:$11.76 / Each
Quantity:
WAGO 721-110/026-000 1-conductor female plug
Brand: Wago
Part Number: 721-110/026-000
Additional Description: WAGO-721-110/026-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; 2.5 MM; PIN SPACING 5 MM; 10-POLE; 2,50 MM; LIGHT GRAY 51118154 PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 5 MM; 10-POLE; 2,50 MM ; LIGHT GRAY 51118154 GRAY
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 10-pole; 100% protected against mismating; 2,50 mm²; light gray
721-110/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- 100 Percent protected against mismating
- Coding option available
721-110/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2377914Part Number #721-110/026-000UNSPSC39121421UPC04044918355193
