Brand: Wago

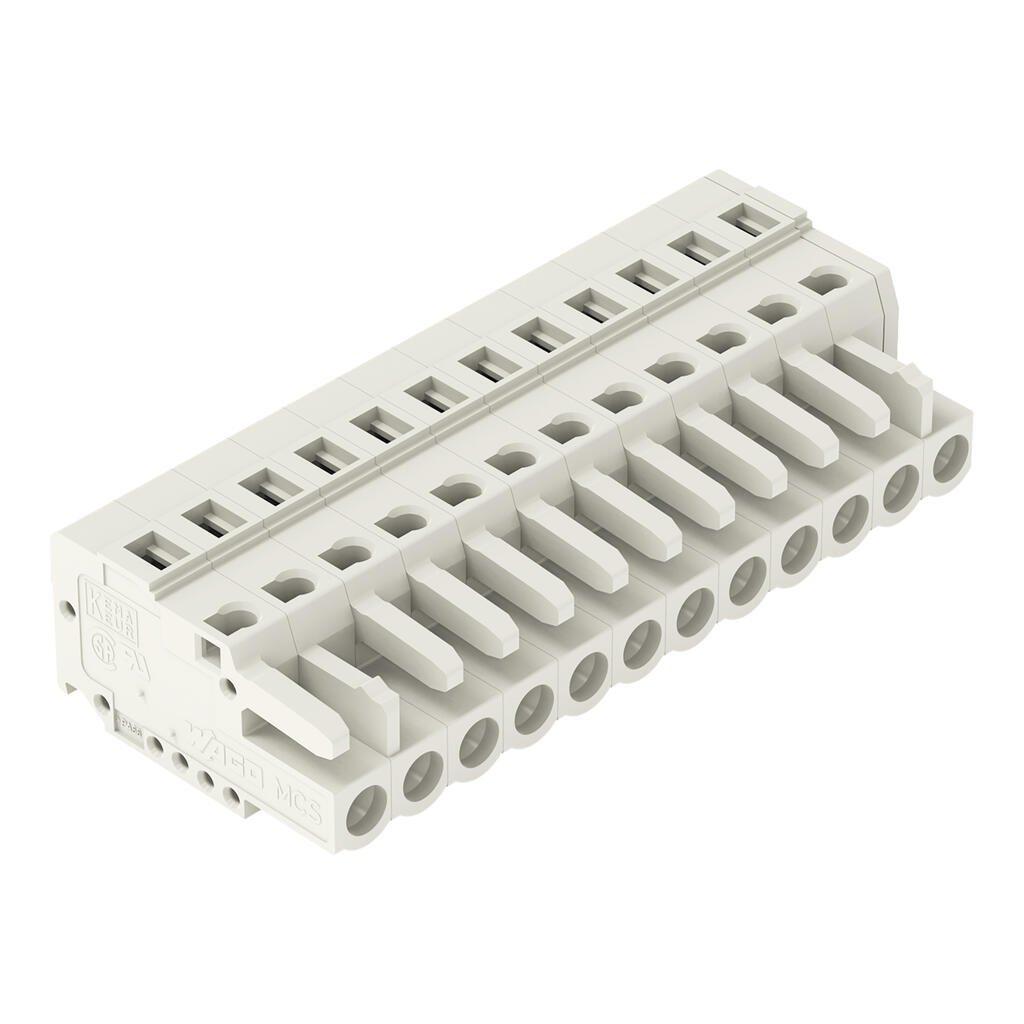

WAGO 721-112/026-000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 721-112/026-000 1-conductor female plug
Brand: Wago
WAGO 721-112/026-000 1-conductor female plug
Part #:721-112/026-000
SKU #: 2287614
$11.15/EA
Key Features
Part #:721-112/026-000
SKU #: 2287614
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$11.15/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 26.45 mm / 1.041 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 16 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 12
Weight: 21.870 g
Width: 61.5 mm / 2.421 inch
UNSPSC: 39121421
UPC: 04044918355483
WAGO 721-112/026-000 1-conductor female plug
Additional Description: WAGO-721-112/026-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 5 MM; 12-POLE; 2,50 MM ; LIGHT GRAY 12 pole white 51118183
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 12-pole; 100% protected against mismating; 2,50 mm²; light gray
