Part Number # 721-114/008-000
SKU # 2431488
721-114/008-000

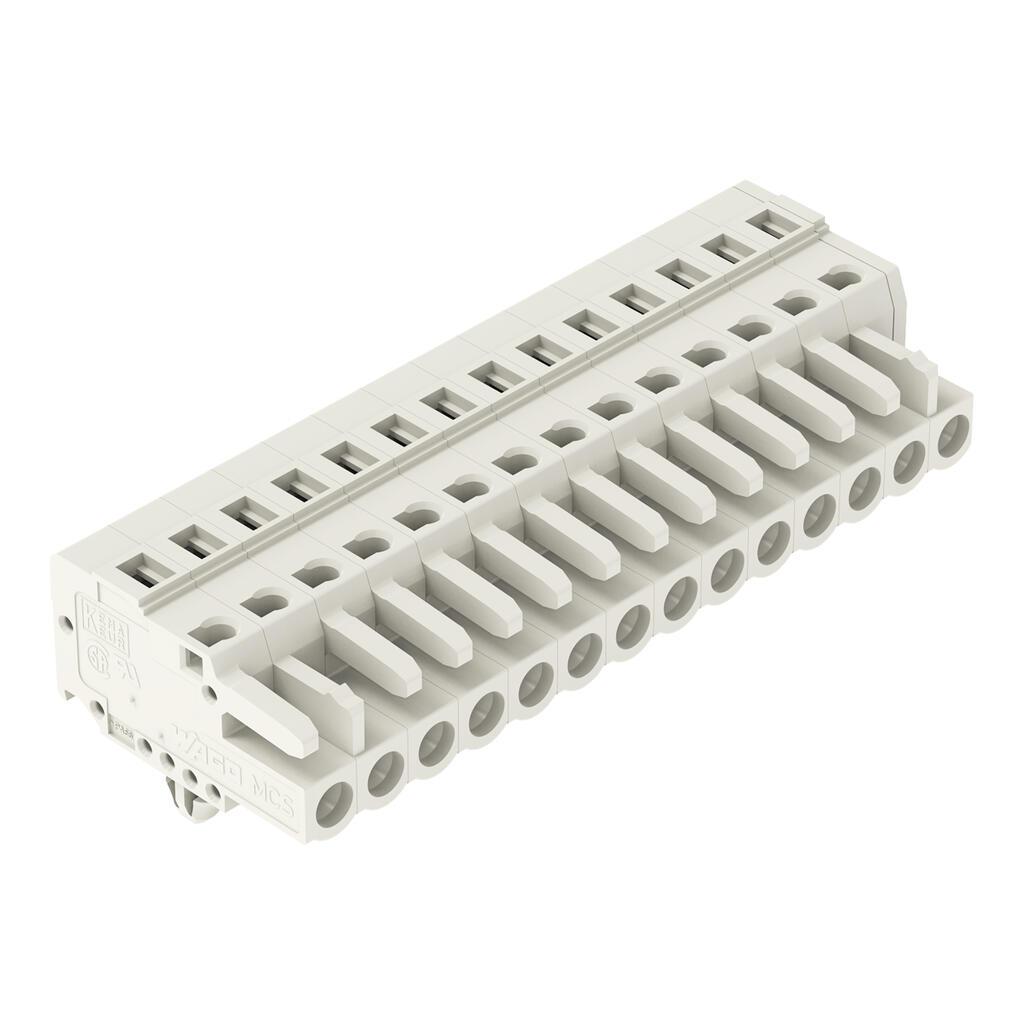

WAGO 721-114/008-000 Electrical Connector Assembly
Part Number # 721-114/008-000
SKU # 2431488
$14.83 / Each
Typical price:$16.07 / Each
Wago 721-114/008-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-114/008-000 |
| SKU #: | 2431488 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.74 in H x 2.815 in W x 1.041 in D |
| Number of Poles: | 14 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | Panel |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918355759 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.83 / Each
Typical price:$16.07 / Each
Quantity:
WAGO 721-114/008-000 Electrical Connector Assembly
Brand: Wago
Part Number: 721-114/008-000
Additional Description: WAGO-721-114/008-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; SNAP-IN MOUNTING FEET; 2.5 MM; PIN SPACING 5 MM; 14-POLE; 2,50 MM; LIGHT GRAY 51118208
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 14-pole; 100% protected against mismating; Snap-in mounting feet; 2,50 mm²; light gray
721-114/008-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- 100 Percent protected against mismating
- Coding option available
721-114/008-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2431488Part Number #721-114/008-000UNSPSC39121421UPC04044918355759
Image provided may only be a representation of final product and may include optional equipment
