Part Number # 721-210/026-000
SKU # 2431447
721-210/026-000

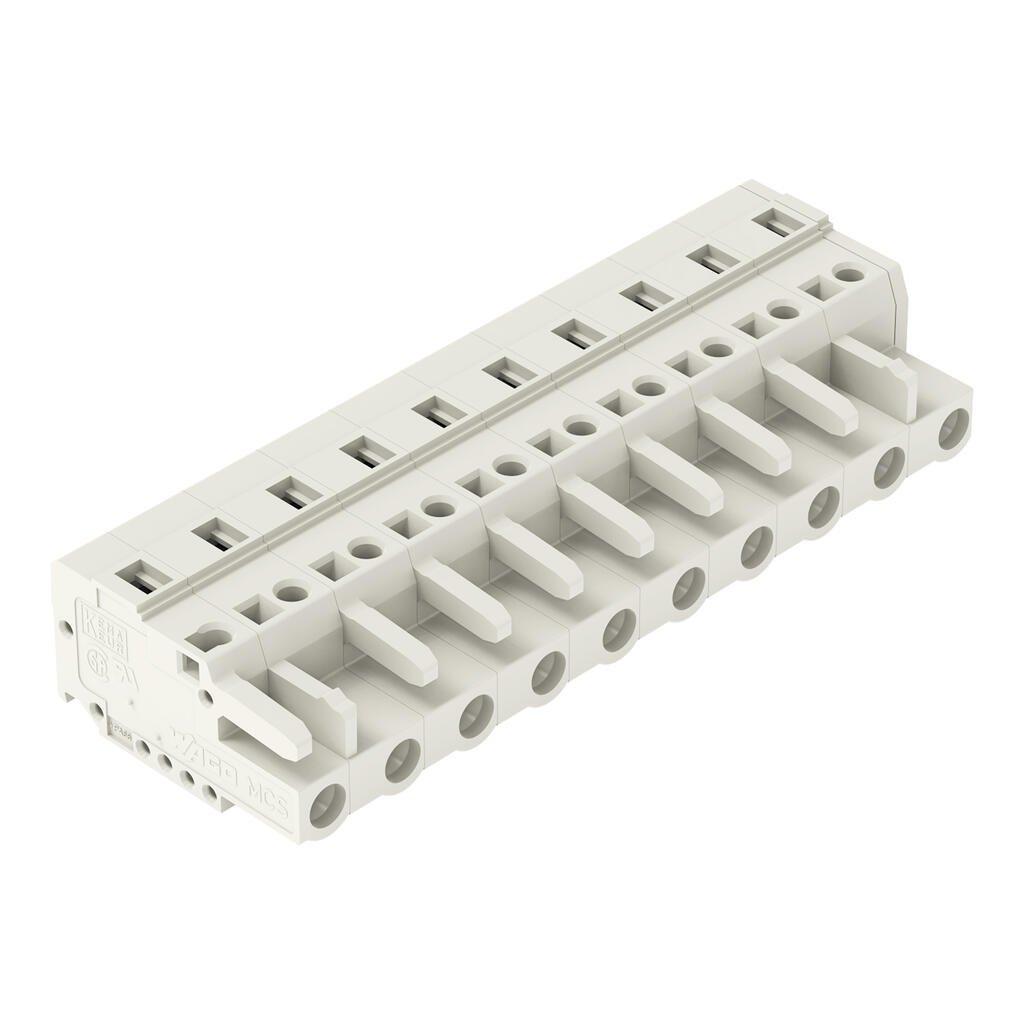

WAGO 721-210/026-000 Electrical Connector Assembly
Part Number # 721-210/026-000
SKU # 2431447
$11.28 / Each
Typical price:$12.22 / Each
Wago 721-210/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-210/026-000 |
| SKU #: | 2431447 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 2.913 in W x 1.041 in D |
| Number of Poles: | 10 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918357418 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.28 / Each
Typical price:$12.22 / Each
Quantity:
WAGO 721-210/026-000 Electrical Connector Assembly
Brand: Wago
Part Number: 721-210/026-000
Additional Description: WAGO-721-210/026-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; 2.5 MM; PIN SPACING 7.5 MM; 10-POLE; 2,50 MM; LIGHT GRAY 51118327
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 10-pole; 100% protected against mismating; 2,50 mm²; light gray
721-210/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- 100 Percent protected against mismating
- Coding option available
721-210/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2431447Part Number #721-210/026-000UNSPSC39121421UPC04044918357418
Image provided may only be a representation of final product and may include optional equipment
