Part Number # 721-212/026-000
SKU # 2172806
721-212/026-000

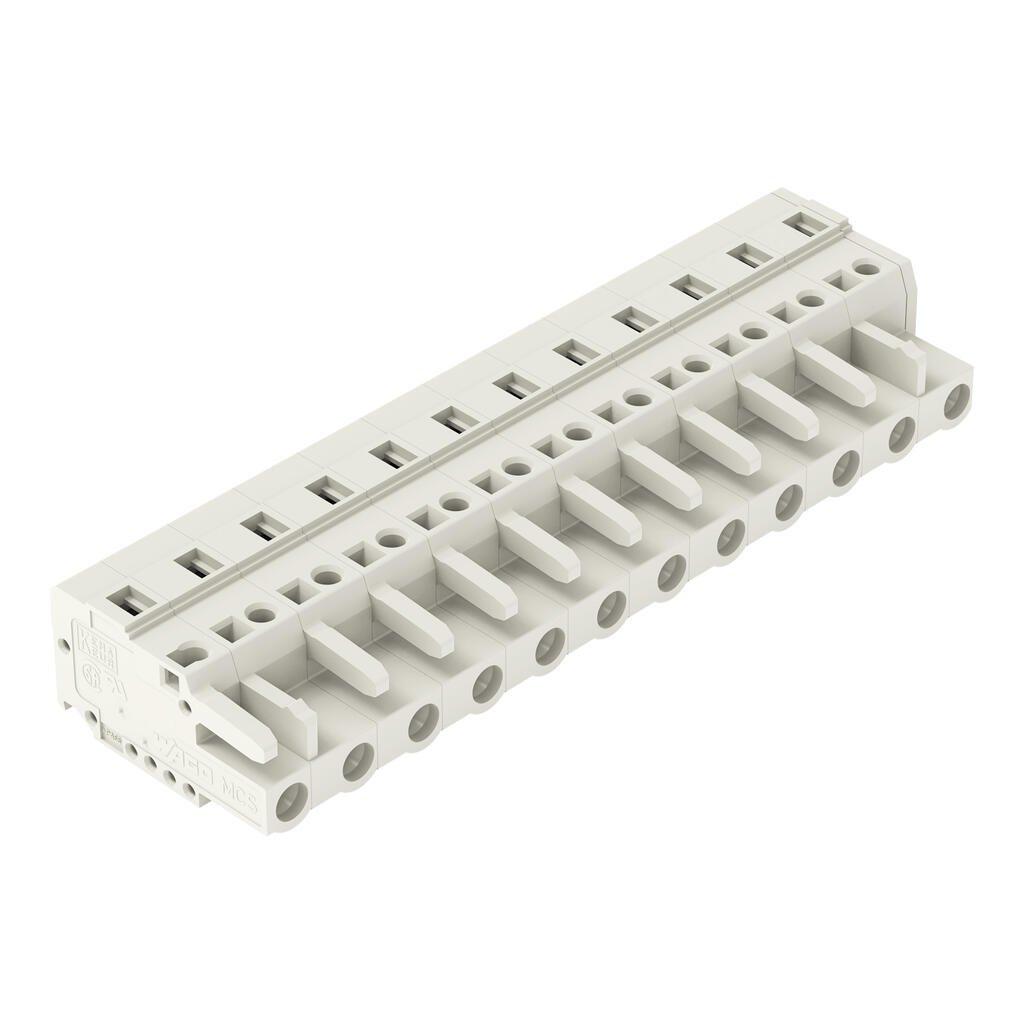

WAGO 721-212/026-000 1-conductor female plug
Part Number # 721-212/026-000
SKU # 2172806
Wago 721-212/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-212/026-000 |
| SKU #: | 2172806 |
| Dimensions: | 0.563 in H x 3.504 in W x 1.041 in D |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Contact material: | Copper alloy |
| Depth: | 26.45 mm / 1.041 inch |
| Height: | 14.3 mm / 0.563 inch |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 12 |
| Weight: | 25.097 g |
| Width: | 89 mm / 3.504 inch |
| UNSPSC: | 39121421 |
| UPC: | 04044918357463 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 721-212/026-000 1-conductor female plug
Brand: Wago
Part Number: 721-212/026-000
Additional Description: WAGO-721-212/026-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; 2.5 MM; PIN SPACING 7.5 MM; 12-POLE; 2,50 MM; LIGHT GRAY 51118332 PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 7.5 MM; 12-POLE; 2,50 MM ; LIGHT GRAY 51118332
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 12-pole; 100% protected against mismating; 2,50 mm²; light gray
721-212/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- 100 Percent protected against mismating
- Coding option available
721-212/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2172806Part Number #721-212/026-000UNSPSC39121421UPC04044918357463
Image provided may only be a representation of final product and may include optional equipment
